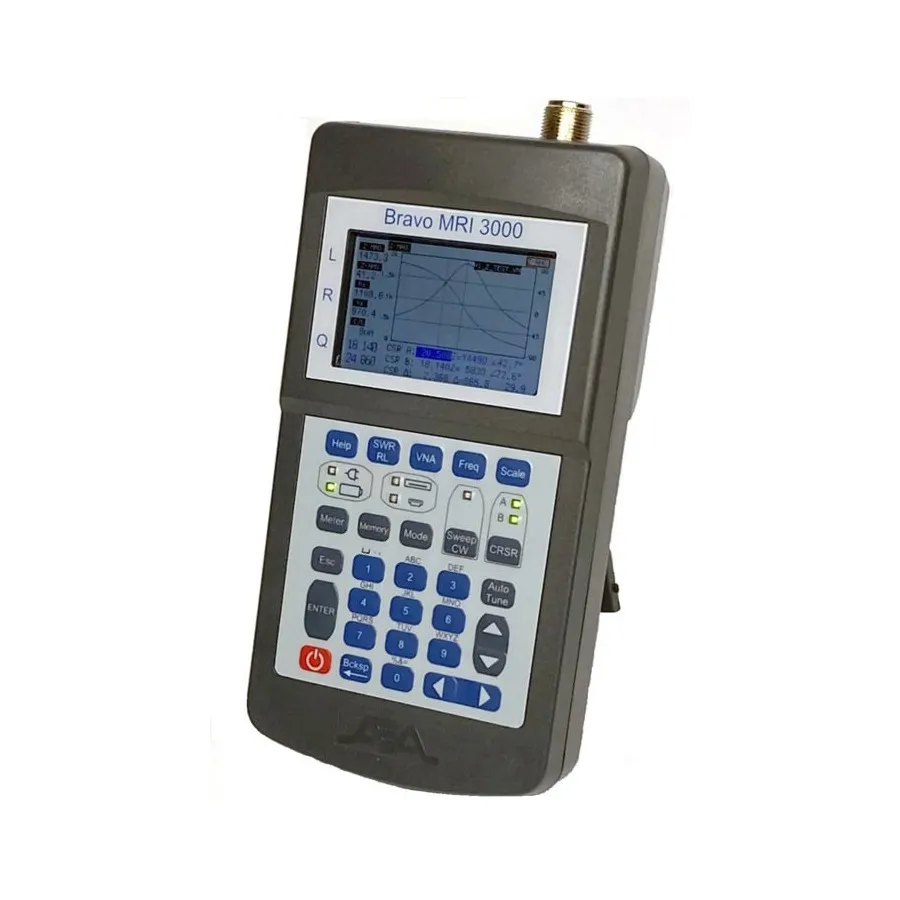

AEA 6055-5100 Bravo MRI 3000 Dual Port Network Analyzer
Request a quote
Ultra low-magnetic dual port network analyzer for MRI systems with 100 kHz to 450 MHz range and 0-2000 Ohm impedance measurement.
Product details
| Model | 6055-5100 |
| Manufacturer | AEA |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The AEA Bravo MRI 3000 is an ultra low-magnetic network analyzer designed for MRI systems. With a frequency range of 100 kHz to 450 MHz (0.1 T to 10 Tesla), it accurately measures impedances from 0 to 2000 Ohms, resistance, impedance angle, Q, X, return loss, and SWR. The dual port (S11/S21) configuration enables comprehensive two-port measurements for advanced MRI system testing.
Key Features
- Ultra low-magnetic design for safe operation near magnetic fields up to 10 Tesla
- Frequency range: 100 kHz to 450 MHz
- Impedance measurement: 0 to 2000 Ohms
- Dual Y-axis independent scale display for simultaneous measurement parameters
- Dual N ports (S11/S21) for comprehensive two-port measurements
- CE Compliant
- Portable design for field installation and service
Applications
- MRI system installation and commissioning with dual-port measurements
- Maintenance and troubleshooting of 10 Tesla MRI systems
- RF coil and transmission line characterization
- Impedance and transmission line parameter verification
Included Accessories
- N to BNC Adapter
- BNC Terminators (short and load)
- 6 ft USB Cable and 15 ft extension
- AC Adapter and extension
- Quick start guide and CD with operating manual
- MRI PC Vision™ software
