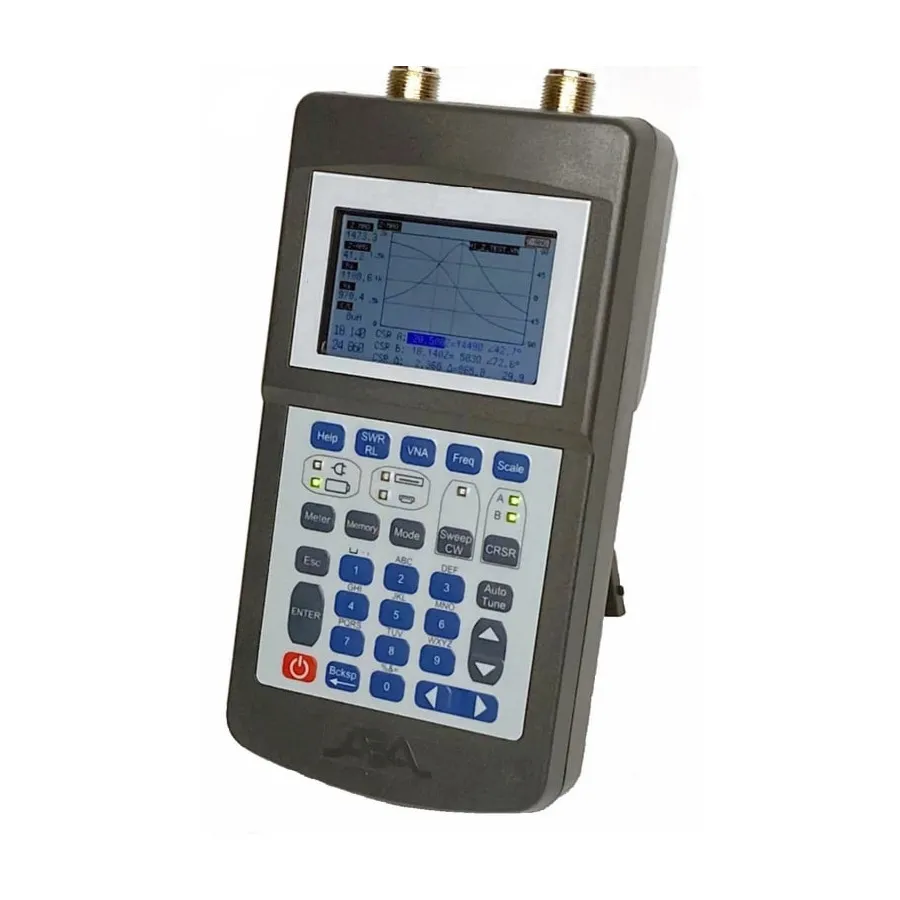

AEA 6053-5000 Bravo EX Vector Network Analyzer
Request a quote
AEA 6053-5000 Bravo EX is a portable vector network analyzer covering 100kHz to 525MHz with impedance and return loss measurement, Site Analyzer software, and field-portable design.
Product details
| Model | 6053-5000 |
| Manufacturer | AEA |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The AEA 6053-5000 Bravo EX is a portable vector network analyzer designed for field and laboratory use. Operating from 100kHz to 525MHz, it accurately measures impedances from 0 to 2,000 ohms, resistance, impedance angle, return loss, and standing wave ratio (SWR). The Bravo EX features a dual N-type port configuration and can simultaneously display two measurement parameters on its LCD screen.
Key Features
- Frequency range of 100kHz to 525MHz
- Impedance measurement range from 0 to 2,000 ohms
- Dual N-type ports for flexible testing
- Simultaneous dual-parameter display on LCD
- Graphical display of impedance and return loss measurements
- Fully rechargeable with included AA NiMH batteries
- Portable design suitable for field or lab use
Applications
- Filter and resonant device testing and tuning
- Antenna impedance measurement
- Transmission line characterization
- Component matching and troubleshooting
Included Accessories
- N-type terminators (short and 50 ohm)
- Padded carrying case
- 6 ft USB cable
- AC adapter
- AA NiMH rechargeable batteries
- Operating manual and training PPT on CD
- Site Analyzer PC Vision software
Specifications
