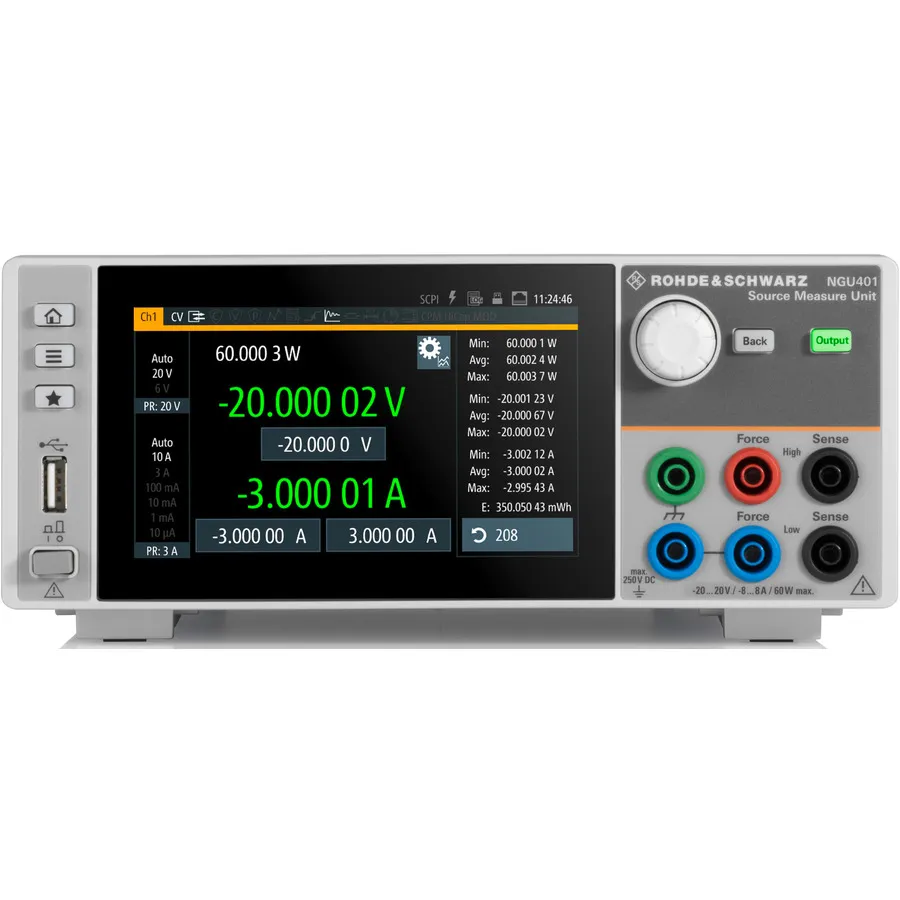

Rohde & Schwarz NGU401COM Source Measure Unit

Overview

The Rohde & Schwarz NGU401COM is a four-quadrant source measure unit ideal for semiconductor testing and general-purpose applications requiring high precision power control. With four-quadrant architecture, it supplies positive or negative voltages and currents, functioning as both source and sink. The 60W output and sink power capability, combined with -20V to +20V output range and up to 8A current at voltages ≤6V, enables comprehensive device characterization from low-power to high-current applications.

Key Features

• Four-quadrant operation: source and sink in both positive and negative polarities
• Output voltage: -20V to +20V
• Maximum current: ≤6V / 8A; >6V / 3A
• Maximum output and sink power: 60W
• High-speed data acquisition: 500 ksample/s with 2 μs resolution (FastLog function)
• Voltage priority and current priority modes for optimized regulation
• High-capacitance mode for DUT input capacitance compensation
• Fast load regulation with <30 μs recovery time
• Measurement resolution up to 6½ digits
• Galvanically isolated floating channels
• Optional Digital I/O ports (K103 option)

Applications

• Forward and reverse semiconductor device characterization in single test operations
• Mobile and IoT device power profiling and battery simulation
• Bipolar power supply or electronic load operation
• Fast transient response testing
• Low sleep current device testing
