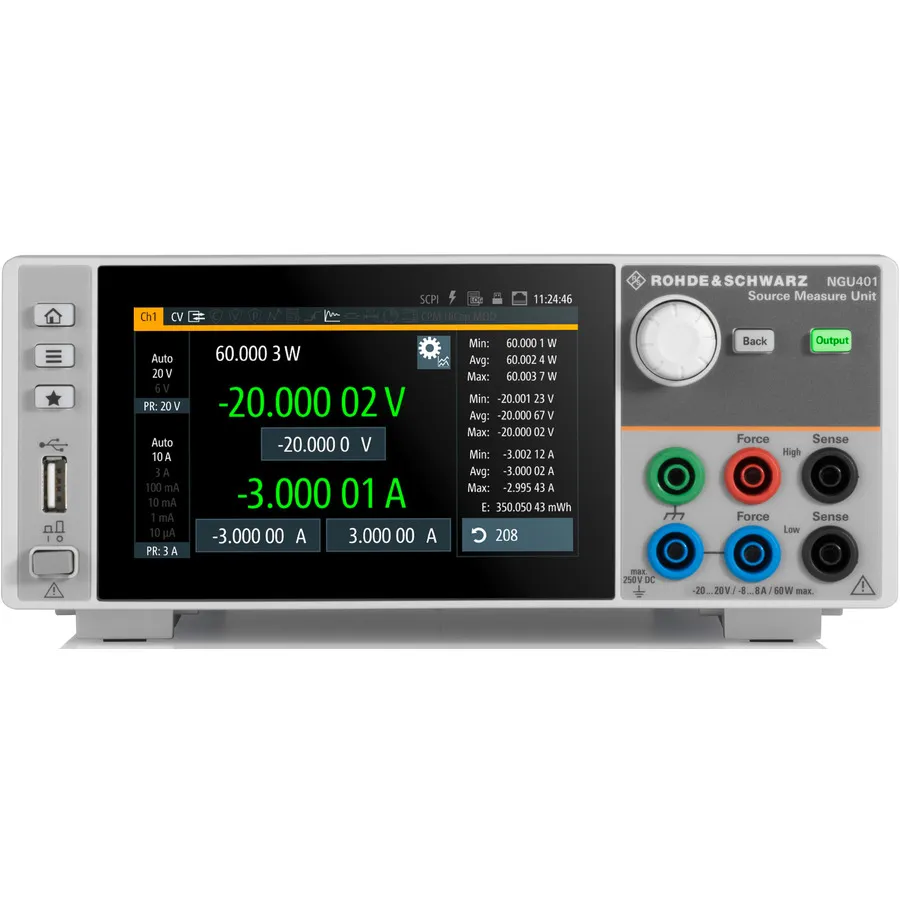

Rohde & Schwarz NGU401 Source Measure Unit

Overview

The Rohde & Schwarz NGU401 is a four-quadrant source measure unit that operates in all quadrants, enabling it to function as both a source and sink with positive or negative voltages and currents. This capability makes the NGU401 ideal for comprehensive device characterization, battery simulation, and load profile testing. With fast load recovery time of less than 30 µs and high-speed data acquisition up to 500,000 samples per second, the NGU401 captures detailed power consumption profiles even during rapid transient events.

Key Features

• Four-quadrant operation: source and sink capability with positive and negative voltages/currents
• Output voltage range -20 V to +20 V, maximum output/sink current ≤6 V: ±8 A; > 6 V: ±3 A
• 60 W output power
• Fast load recovery time < 30 µs with minimal overshoot
• Floating, galvanically isolated channels protected against overload and short circuits
• Voltage priority and current priority operating modes
• High-capacitance compensation mode
• FastLog high-speed data acquisition at up to 500 ksample/s
• Measurement resolution up to 6 ½ digits for voltage, current, and power
• Low residual ripple and noise characteristics

Applications

• Four-quadrant power supply and load simulation
• Semiconductor device characterization and testing
• Battery simulation with charge/discharge profiling
• Load profile testing with rapid current transitions
• Wireless communications device power analysis
