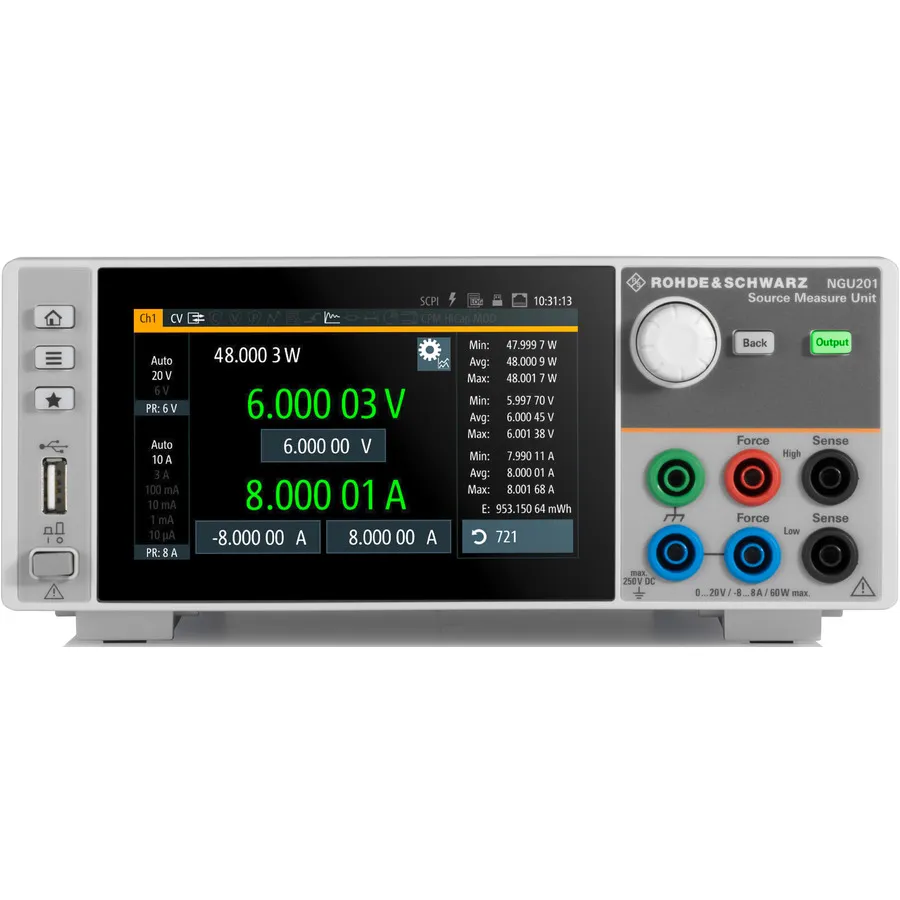

Rohde & Schwarz NGU201COM Source Measure Unit

Overview

The Rohde & Schwarz NGU201COM two-quadrant source measure unit is designed for wireless communications testing and applications requiring ultra-low power supply capability. The NGU201 base unit is combined with three optional modules: Digital Trigger I/O (K103), Digital Voltmeter Functionality (K104), and Battery Simulation (K106). With fast load recovery time of less than 30 µs and extremely low ripple and noise specifications, the NGU201COM is ideal for characterizing devices with highly variable current draws, from deep sleep mode operation to high-power transmission modes.

Key Features

• Two-quadrant operation: functions as both source and sink
• Output voltage range 0 V to 20 V, maximum output/sink current ≤6 V: 8 A; > 6 V: 3 A
• 60 W output power
• Fast load recovery time < 30 µs with minimal overshoot
• Ripple and noise < 500 µV (RMS) / < 1 mA (RMS)
• 500,000 samples per second acquisition rate (FastLog function)
• Measurement resolution up to 6 ½ digits
• Galvanically isolated, floating channels
• Voltage priority and current priority operating modes
• High-capacitance compensation mode

Applications

• Bluetooth Low Energy (BLE) device testing and characterization
• Mobile communications device power supply simulation
• IoT device battery life and sleep mode analysis
• Wireless device load profile testing

Included Accessories

• NGU-K103 Digital Trigger I/O
• NGU-K104 Digital Voltmeter Functionality
• NGU-K106 Battery Simulation
