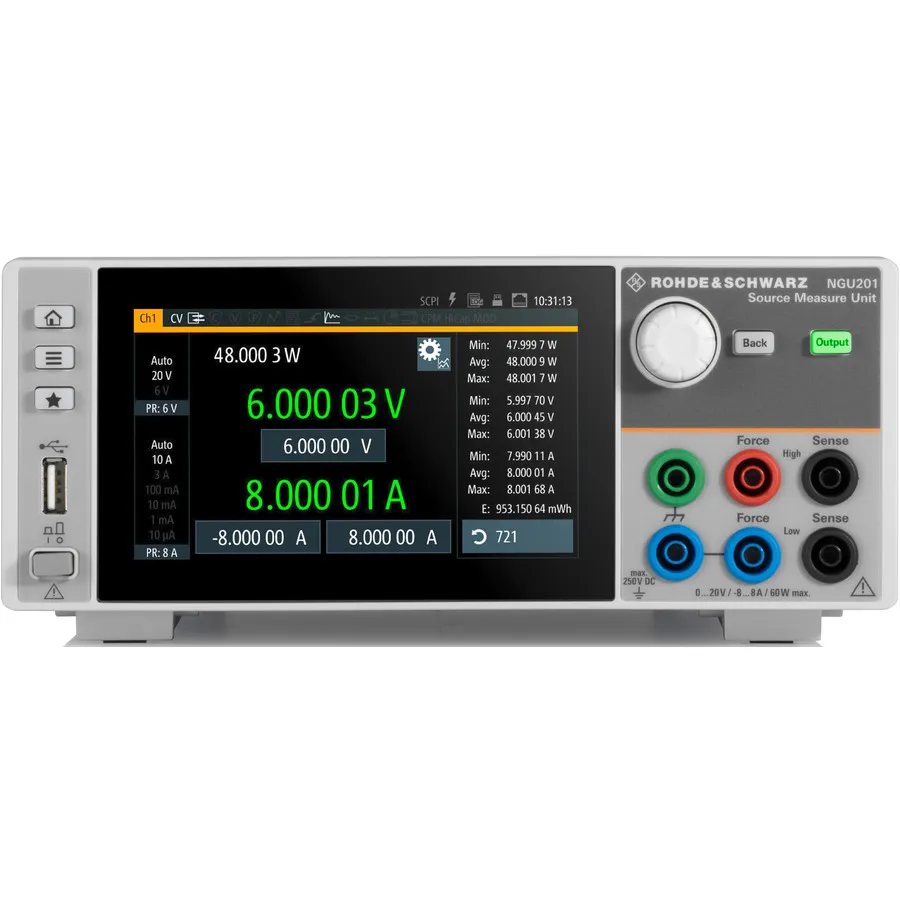

Rohde & Schwarz NGU201 Source Measure Unit
Request a quote
Rohde & Schwarz NGU201 is a two-quadrant source measure unit delivering 0 to 20V and 8A with 60W output power and 500 kS/s acquisition rate for precision device testing.
Product details
| Model | NGU201 |
| Manufacturer | Rohde & Schwarz |
| Category | Source Measure Units |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz NGU201 is a two-quadrant source measure unit designed for testing applications requiring precise voltage and current control with fast load recovery. It combines sourcing and sinking capabilities with high-speed data acquisition, making it ideal for characterizing devices with extremely low standby power consumption such as Bluetooth low-energy devices.
Key Features
- Two-quadrant architecture: operates as source and sink
- Voltage range: 0 to 20V
- Maximum current: 8A (≤6V), 3A (>6V)
- Output power: 60W
- High-speed data acquisition: 500,000 samples per second
- Measurement resolution: up to 6½ digits
- Load recovery time: less than 30 µs
- Galvanically isolated, floating channels
- Voltage priority and current priority modes
- High-capacitance compensation mode
Applications
- Bluetooth and wireless device characterization
- Battery simulation for portable equipment testing
- Low-power IoT device validation
- Sleep-to-active mode transition testing
- LED and power electronics testing
Included Accessories
- Power cable
- Quick start guide
Specifications
| Maximum Current | 8 A |
| Maximum Voltage | 20 V |
| Maximum Power | 60 W |
| Series | NGU Series |
| Alternate Product Number | 3639.3763.02 |
| Type | Source Measure Unit |
