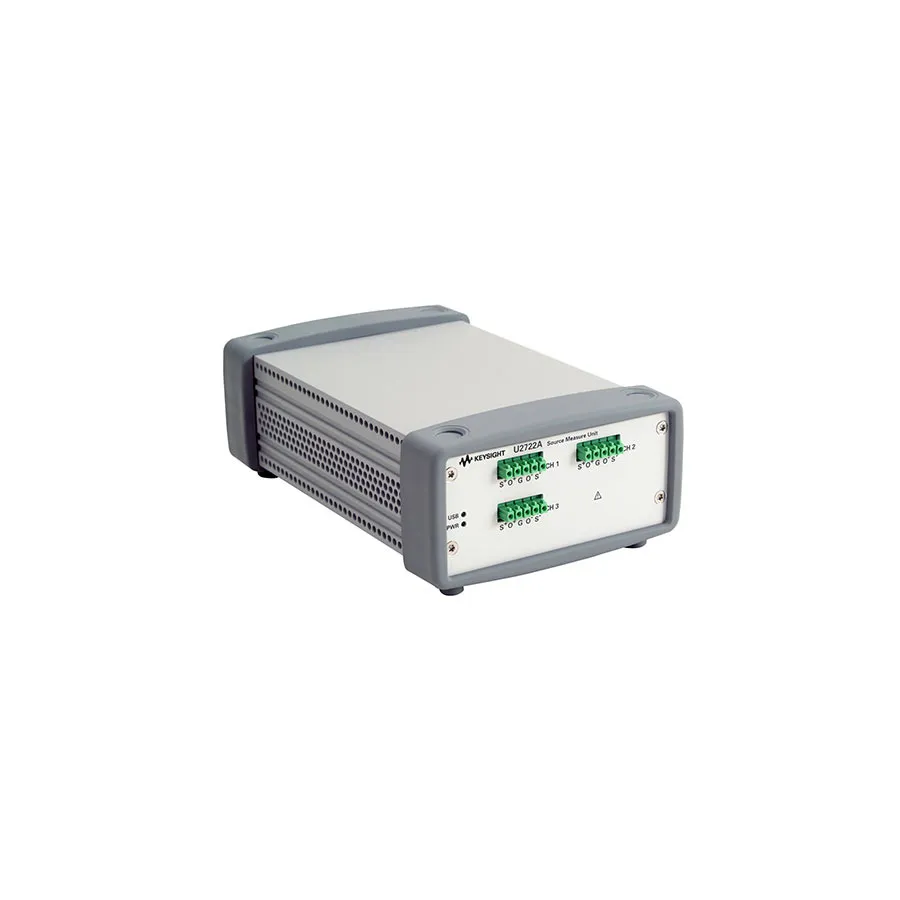

Keysight U2722A USB Modular Source Measure Unit
Request a quote
Keysight U2722A is a 3-channel USB source measure unit with 0.1% accuracy, 100pA sensitivity, 4-quadrant ±20V/±120mA operation, and 16-bit resolution.
Product details
| Model | U2722A |
| Manufacturer | Keysight |
| Category | Source Measure Units |
| Availability | Made to order |
Description
Overview
The Keysight U2722A is a 3-channel USB modular source measure unit (SMU) designed for flexible testing and measurement of semiconductor components and circuits. It combines high-precision voltage and current sourcing with sensitive measurement capabilities, offering both standalone and modular configuration options for integration into larger test systems.
Key Features
- 3-channel source measure unit
- 4-quadrant operation (±20V, ±120mA per channel)
- 0.1% basic accuracy
- High current sensitivity of 100pA with 16-bit resolution
- Low current measurement capability down to nanoampere levels
- Voltage and current programming with readback capability
- Hi-Speed USB 2.0 with USBTMC-USB488 standard
- Standalone or modular configuration
- Compatible with Keysight VEE, NI LabVIEW, and Microsoft Visual Studio
- Includes BenchVue BV0023B software license
Applications
- Semiconductor device parametric testing
- IC characterization and verification
- Power supply testing and validation
- Research and development
- Educational laboratory use
Specifications
| Power Rating | 7.2 W |
