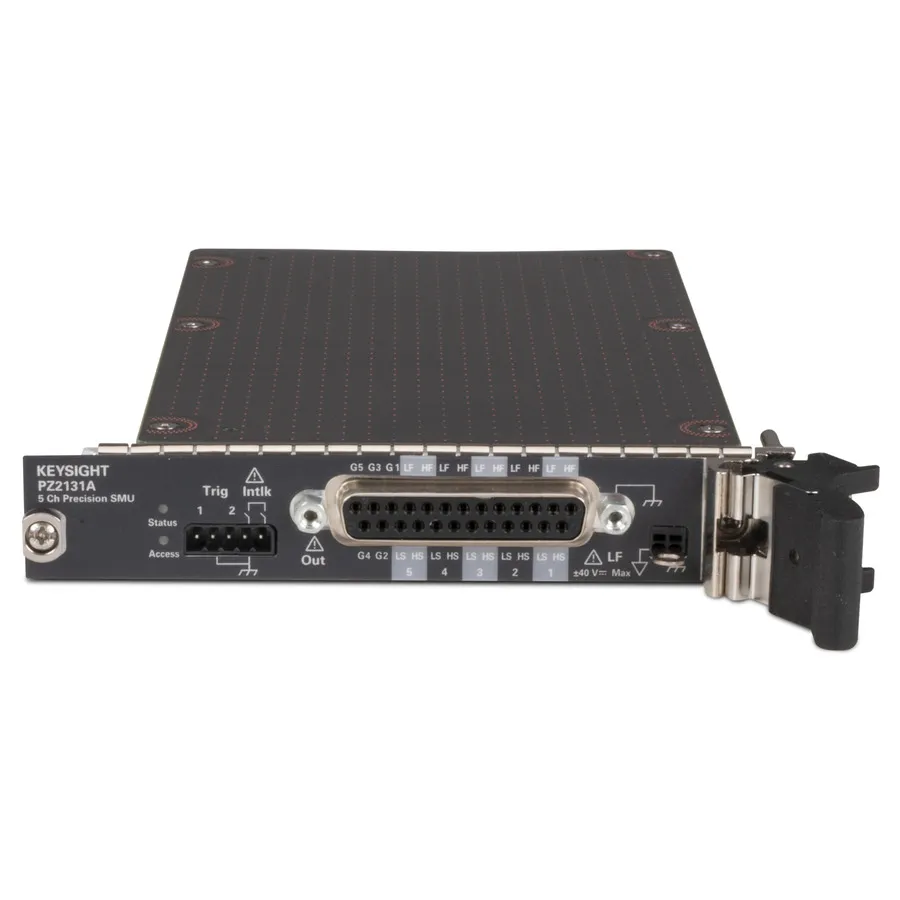

Keysight PZ2131A Source Measure Unit
Request a quote
Keysight PZ2131A high-density 5-channel source measure unit with 500 kSa/s sampling, 10 pA resolution, and 30V/500mA DC/pulse capability for automated testing.
Product details
| Model | PZ2131A |
| Manufacturer | Keysight |
| Category | Source Measure Units |
| Availability | Made to order |
Description
Overview
The Keysight PZ2131A is a high-density 5-channel source measure unit (SMU) module for the PZ2100 Series automated test equipment platform. It delivers 500 kSa/s sampling rate with 10 pA resolution and supports DC and pulse measurements up to 30V/500mA, making it ideal for multi-channel test applications requiring fast digitization and precise current measurements.
Key Features
- 5-channel configuration with high channel density (up to 20 channels in 1U rack with multiple modules)
- 500 kSa/s digitizer sampling rate with 10 pA resolution
- Output range: 30V, 500mA DC/pulse
- Narrow pulse capability down to 100 μs pulse width
- Low voltage source noise down to 25 μVrms with optional PX0107A module
- Seamless integration with PathWave IV Curve Measurement software
- Synchronization accuracy of <50 ns across all channels
Applications
- Semiconductor device characterization and parametric testing
- LED and power device testing
- Multi-channel DC measurements in automated test systems
- Precision pulsed measurement applications
Specifications
| Maximum Current | 500 mA |
| Maximum Voltage | 30 V |
| Series | PZ2100 Series |
| Sampling Rate | 500 kS/s |
