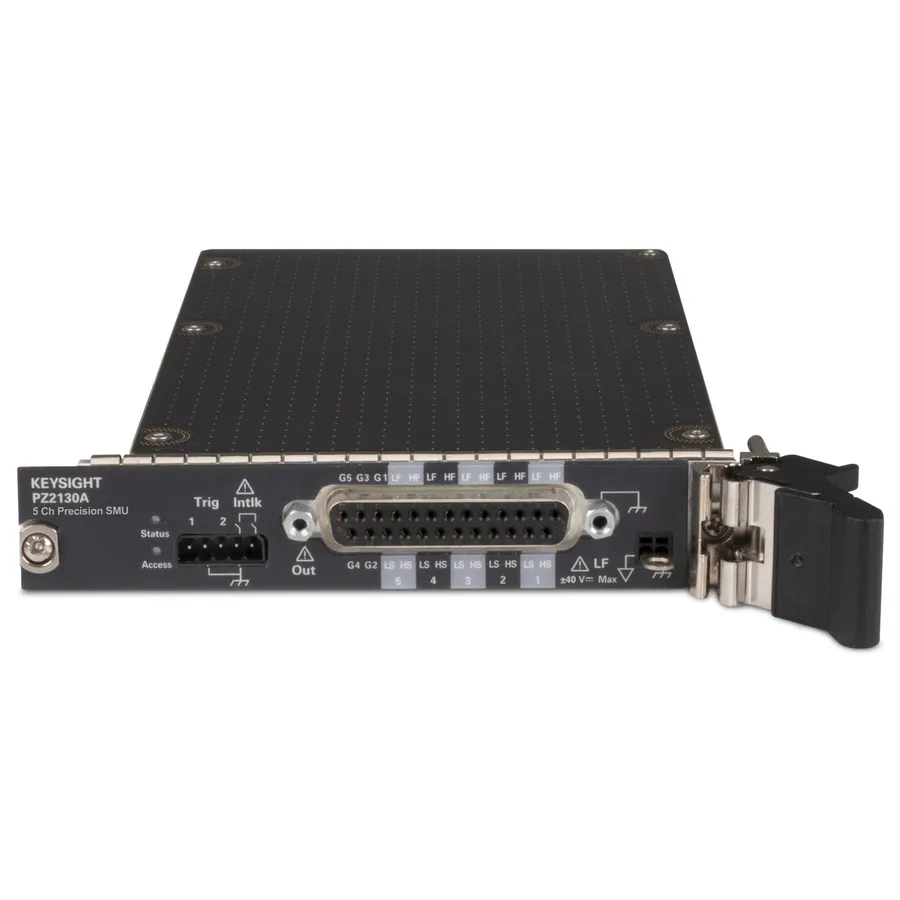

Keysight PZ2130A Source Measure Unit
Request a quote
Keysight PZ2130A 5-channel high-density source measure unit with 100 pA resolution, 30 V, 500 mA DC, 250 kSa/s sampling, and 25 μVrms voltage noise.
Product details
| Model | PZ2130A |
| Manufacturer | Keysight |
| Category | Source Measure Units |
| Availability | Made to order |
Description
Overview
The Keysight PZ2130A is a 5-channel high-density source measure unit module optimized for multi-channel applications requiring low-noise voltage sourcing and picoampere-level current measurement. With 100 pA resolution, 30 V output, and 500 mA DC capability, the PZ2130A delivers 20 channels maximum in a single 1U rack height, significantly reducing cost per channel and test floor space. Low voltage source noise down to 25 μVrms makes it ideal for sensitive analog circuits and precision measurements.
Key Features
- 100 pA current resolution for precision low-level measurements
- Output voltage up to 30 V with 500 mA DC capability
- 250 kSa/s fast sampling rate for dynamic measurements
- Ultra-low voltage source noise: 25 μVrms (with PX0107A filter option)
- 5-channel per module configuration for high-density multi-channel testing
- Up to 20 channels in a single 1U rack height (maximum configuration)
- Low cost per channel compared to conventional multi-channel SMUs
- Less than 50 ns inter-channel synchronization accuracy
Applications
- Multi-channel parametric testing of analog integrated circuits
- Low-voltage power supply testing and monitoring
- Power management IC characterization
- LED driver and biasing circuit testing
- Precision audio codec and sensor characterization
- High-volume production testing with space constraints
Specifications
| Maximum Current | 500 mA |
| Maximum Voltage | 30 V |
| Series | PZ2100 Series |
| Sampling Rate | 250 kS/s |
