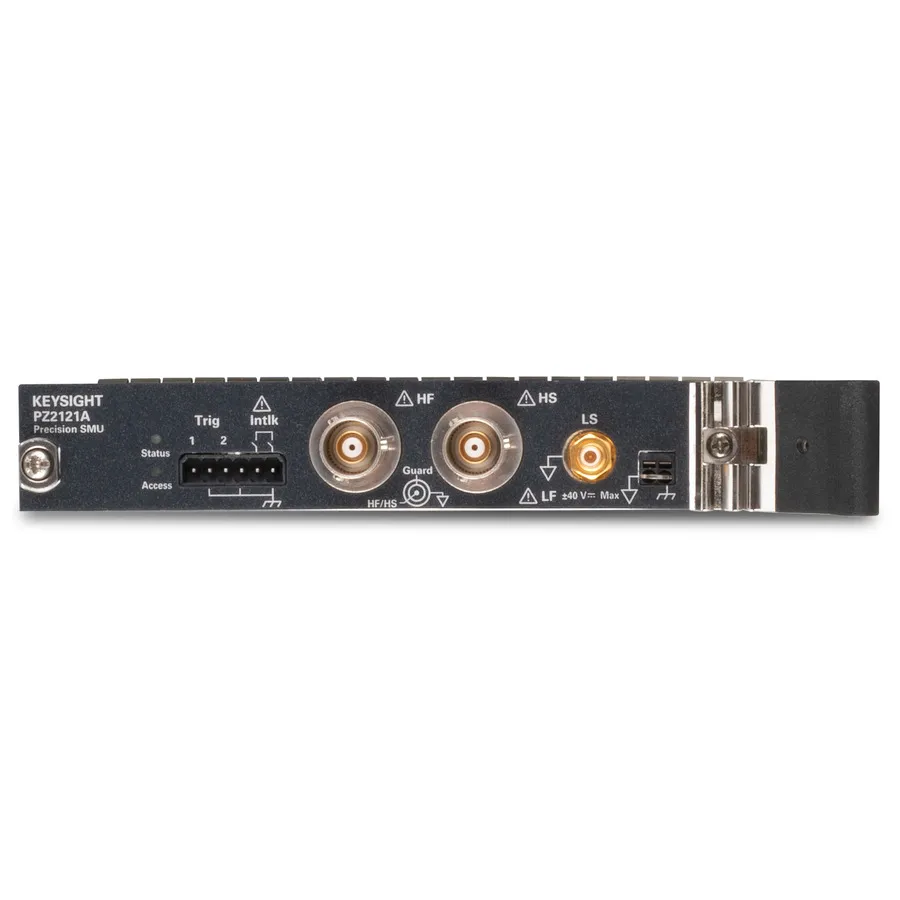

Keysight PZ2121A Source Measure Unit
Request a quote
Keysight PZ2121A ultra-high-speed source measure unit with 15 MSa/s sampling, 100 fA resolution, 60 V/3.5 A DC, 10.5 A pulse, and 10 μs pulse width.
Product details
| Model | PZ2121A |
| Manufacturer | Keysight |
| Category | Source Measure Units |
| Availability | Made to order |
Description
Overview
The Keysight PZ2121A is the ultra-high-speed variant of the PZ2100 Series, delivering 15 MSa/s sampling capability for the fastest dynamic measurements and transient analysis. With 100 fA resolution, 60 V output range, and 3.5 A DC or 10.5 A pulse capability, the PZ2121A excels at fast switching transient analysis, narrow pulse generation down to 10 μs, and real-time device behavior capture. It is ideal for characterizing power devices and advanced semiconductor technologies.
Key Features
- 15 MSa/s ultra-high-speed digitizer mode for fast transient capture
- 100 fA resolution for low-level leakage and noise measurements
- Output range up to 60 V / 3.5 A DC or 10.5 A pulse
- Narrow pulse generation down to 10 μs pulse width
- Real-time transient and switching behavior analysis
- Less than 50 ns multi-channel synchronization accuracy
- Seamless measurement ranging with wide dynamic range
- PathWave IV Curve Measurement and advanced waveform analysis software
Applications
- Fast switching transient analysis and commutation testing
- Wide bandgap (GaN, SiC) device characterization
- Power MOSFET and power IC dynamic behavior analysis
- Gate drive and switching loss characterization
- High-speed parametric testing and failure analysis
- Real-time waveform capture and FFT analysis
Specifications
| Maximum Current | 10.5 A |
| Maximum Voltage | 60 V |
| Series | PZ2100 Series |
| Sampling Rate | 15 MS/s |
