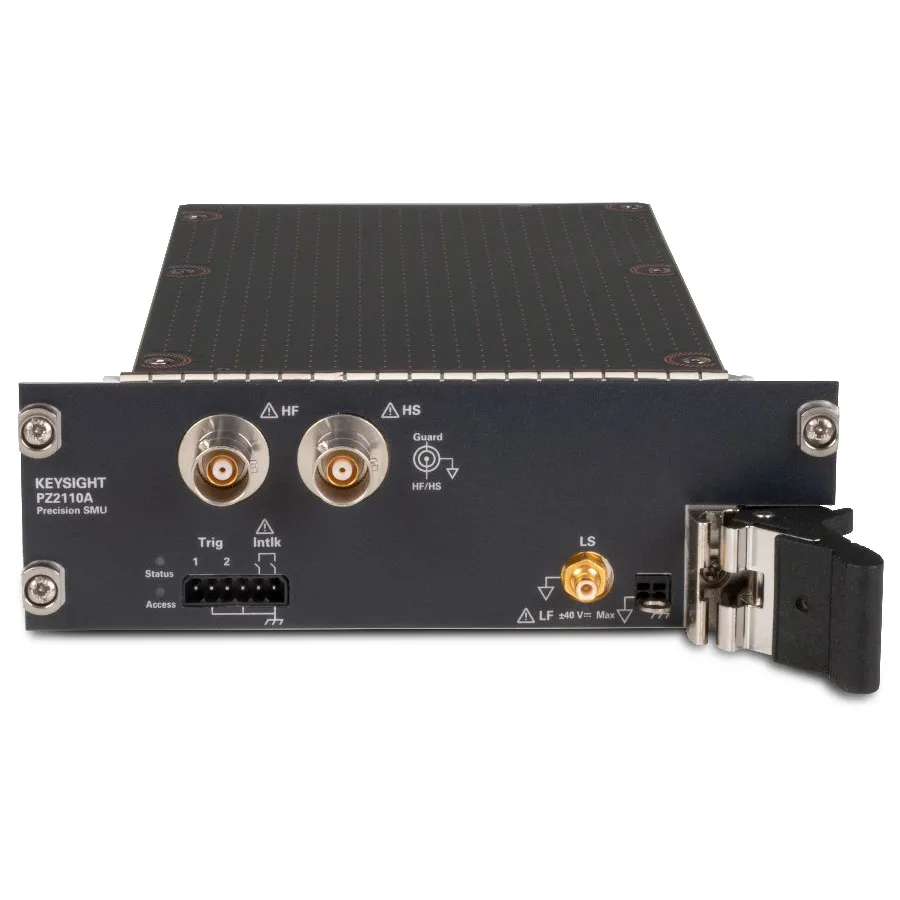

Keysight PZ2110A Source Measure Unit
Request a quote
Keysight PZ2110A precision source measure unit delivers 10 fA resolution, 1.25 MSa/s sampling rate, 210 V output, 315 mA DC/pulse, and <50 ns multi-channel synchronization.
Product details
| Model | PZ2110A |
| Manufacturer | Keysight |
| Category | Source Measure Units |
| Availability | Made to order |
Description
Overview
The Keysight PZ2110A is a high-resolution source measure unit module designed for the PZ2100 Series automated test equipment platform. It delivers industry-leading measurement resolution down to 10 fA with exceptionally low noise performance, making it ideal for semiconductor device characterization, leakage current measurement, and precision IV curve analysis. The PZ2110A integrates seamlessly into the PZ2100 mainframe for flexible, scalable multi-channel configurations.
Key Features
- 10 fA resolution with 30 fArms measurement noise at 1 PLC integration time
- 1.25 MSa/s fast digitizer mode for dynamic measurements
- Output voltage range up to 210 V with 315 mA DC or pulsed capability
- Narrow pulse generation down to 20 μs pulse width
- Fast transient response with 1.4 V/μs slew rate
- Less than 50 ns synchronization accuracy across all 20 channels (when integrated in PZ2100 mainframe)
- PathWave IV Curve Measurement software for seamless operation and data analysis
Applications
- Semiconductor device characterization (BJT, MOSFET, diodes, etc.)
- Leakage current and ultra-low current measurements
- IV curve analysis and dynamic pulsed testing
- Integrated circuit (IC) parametric testing
- Power device analysis (GaN, SiC)
Specifications
| Maximum Current | 315 mA |
| Maximum Voltage | 210 V |
| Series | PZ2100 Series |
| Sampling Rate | 1.25 MS/s |
