Keysight N6786A Source/Measure Unit
Request a quote

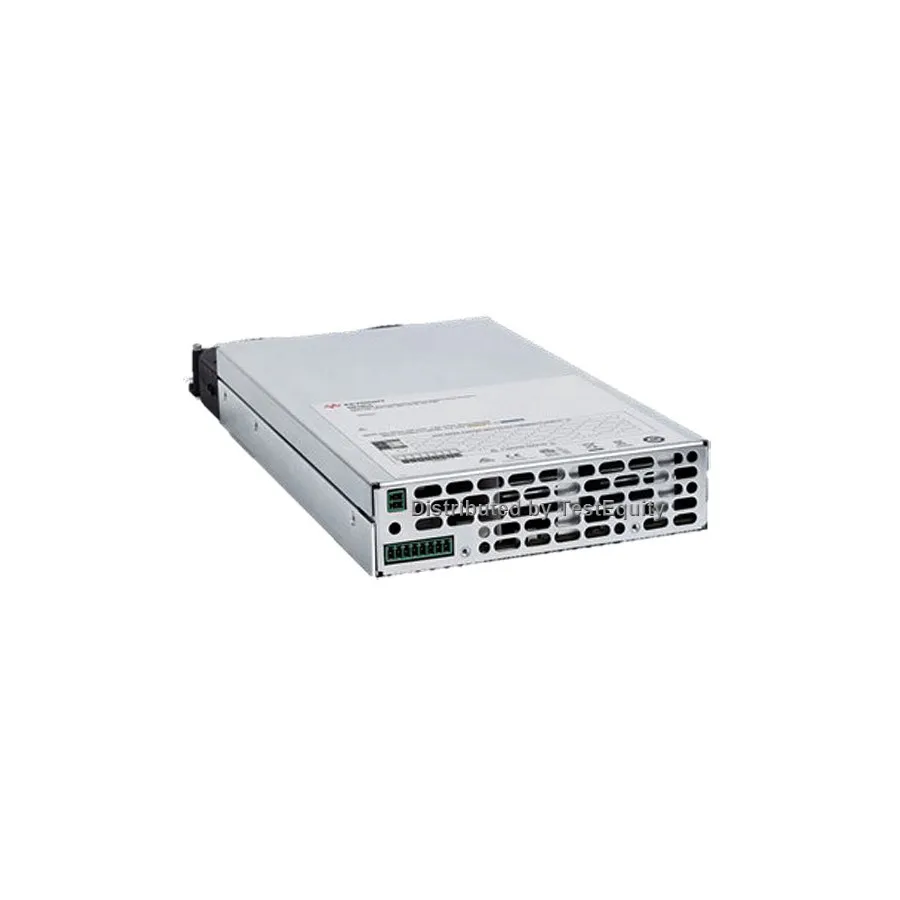

Keysight N6786A is a double-wide 80W source/measure unit with 4-quadrant operation, ±8A/20V output, and seamless measurement ranging for characterization.
Product details
| Model | N6786A |
| Manufacturer | Keysight |
| Category | Source Measure Units |
| Availability | Made to order |
Description
Overview
The Keysight N6786A is a double-wide 80W source/measure unit designed for functional testing of internal components in mobile and battery-powered devices. With 4-quadrant operation and programmable output resistance, it provides flexible sourcing, sinking, and measurement capabilities for comprehensive device characterization.
Key Features
- 4-quadrant operation: 2-quadrant 0 to 20V sourcing and 4-quadrant ±20V bipolar capability
- High-power output up to 80W with double-wide form factor
- Multi-range current output: ±4A, ±5A, ±6.7A, or ±8A depending on voltage range
- Stable, glitch-free sourcing and sinking with battery emulation
- Programmable output resistance to mimic battery internal resistance
- Seamless measurement ranging for nA to A characterization in one pass
- 200 kHz data logging capability for high-speed acquisition
- Quick disconnect connector for easy device attachment
Applications
- Functional testing of internal components in mobile devices
- Battery drain and power consumption analysis
- Sleep mode, idle, and active current characterization
- Device performance testing with battery emulation
Specifications
| Series | N6700 Series |
| Output Current | 8 A |
| Output Voltage | 20 V |
| Power Rating | 80 W |
