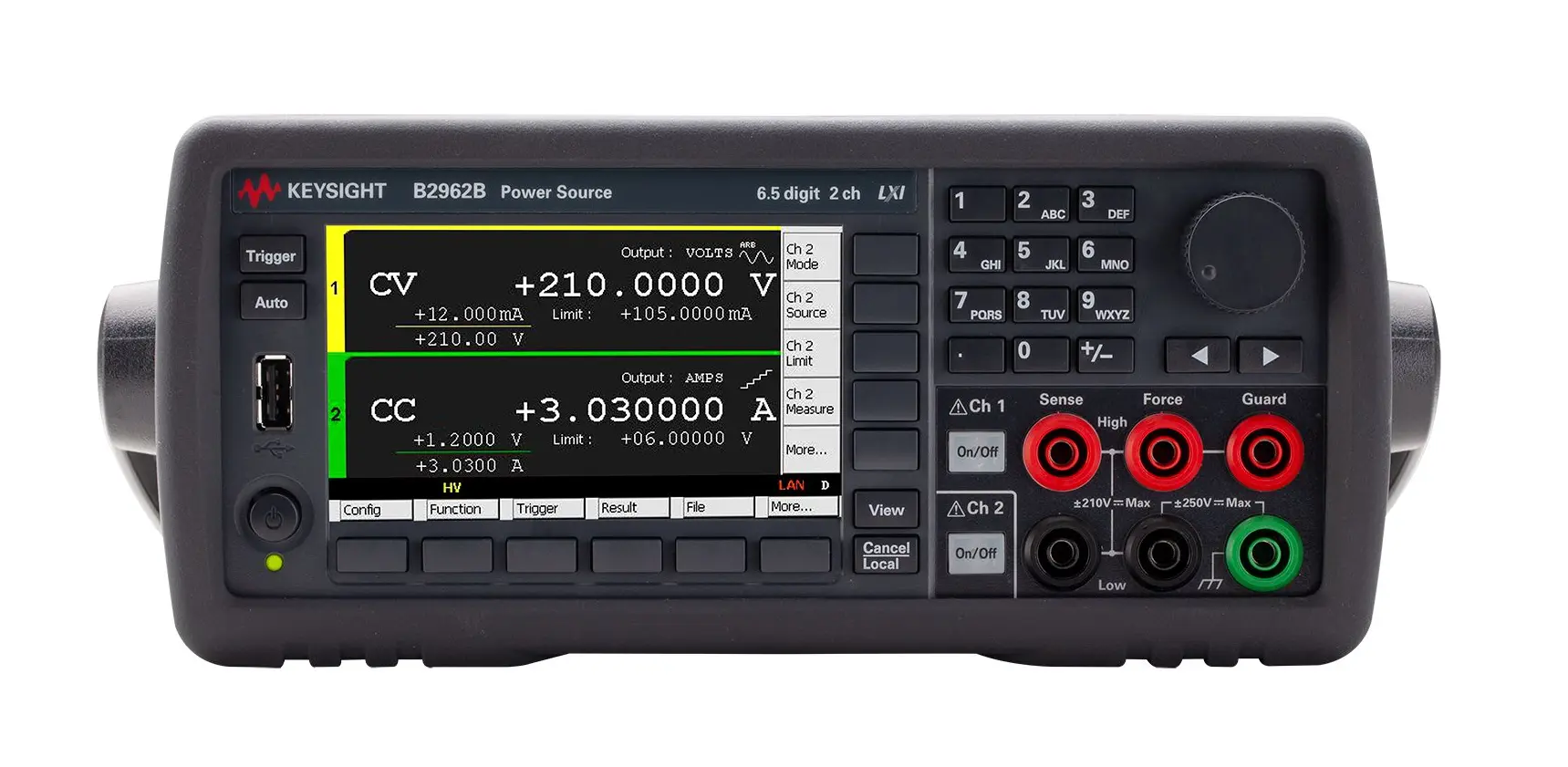

Keysight B2962B 6.5 Digit Low Noise Power Source
Request a quote
Keysight B2962B is a 2-channel, 6.5 digit low-noise power source with 210V/3A bipolar output and 10 µVrms noise with graphical interface.
Product details
| Model | B2962B |
| Manufacturer | Keysight |
| Category | Source Measure Units |
| Availability | Made to order |
Description
Overview
The Keysight B2962B is a 2-channel low-noise power source offering revolutionary capabilities for power supply and source solutions. It meets demanding measurement challenges faced by researchers and engineers developing advanced components, circuits, and materials with intuitive graphical user interface and flexible programmable functions.
Key Features
- 6.5 digit resolution with 100 nV/10 fA minimum resolutions
- Wide bipolar (4-quadrant) voltage/current ranges: ±210 V / ±3 A DC, ±10.5 A pulsed
- Ultra-low noise filter at 10 µVrms, 1 nV/√Hz at 10 kHz
- Intuitive graphical user interface with 4.3 inch color LCD
- 4.5 digit built-in voltage/current monitor
- Time domain waveform viewer for debugging
- Precision 1 mHz–10 kHz arbitrary waveform generation
- Flexible programmable output resistance (constant mode and V/I emulation)
Applications
- Precision analog IC and circuit testing
- Medical device development
- Solar cell evaluation
- Battery management systems testing
- Advanced materials research
Specifications
| High Frequency (range) | DC <= 1kHz |
| Number of Channels | 2 Channel |
| Series | B2960B Series |
