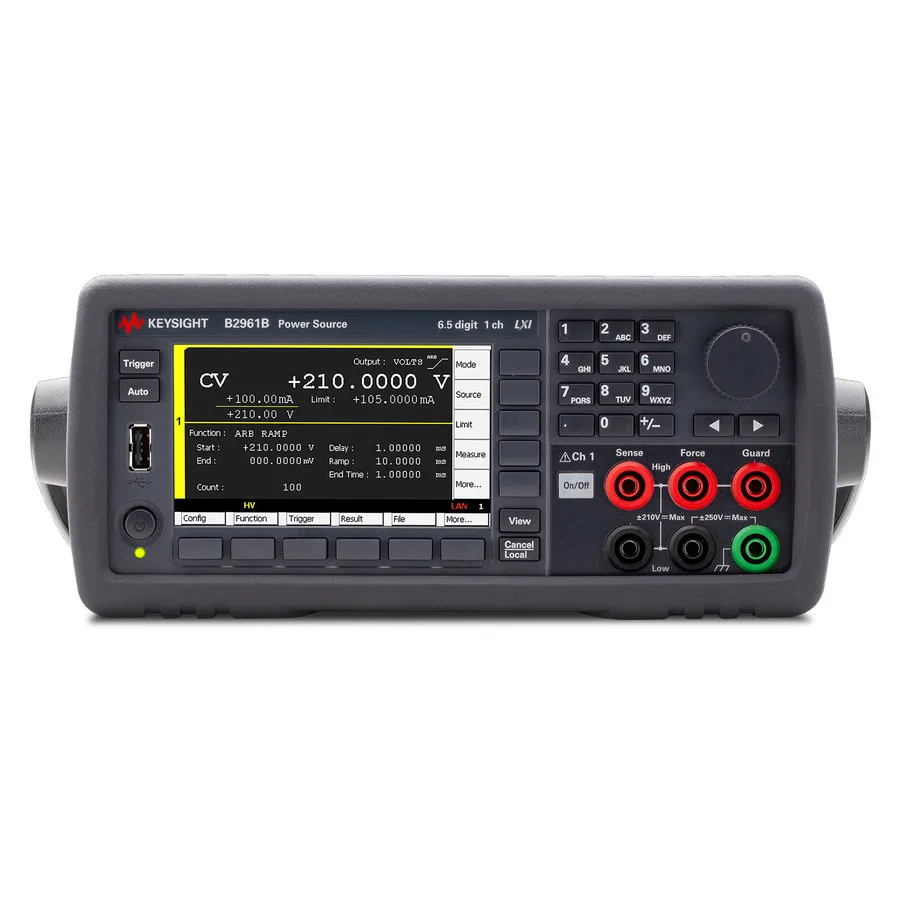

Keysight B2961B Low Noise Power Source
Request a quote
Keysight B2961B single-channel low-noise power source with 6.5-digit resolution, 100 nV/10 fA minimum resolution, bipolar output to ±210 V/3 A, and arbitrary waveform generation.
Product details
| Model | B2961B |
| Manufacturer | Keysight |
| Category | Source Measure Units |
| Availability | Made to order |
Description
Overview
The B2961B is a single-channel, 6.5-digit low-noise power source designed for precision test and evaluation across the electronics industry. It features revolutionary capabilities including bipolar (4-quadrant) current sourcing and sinking, programmable output resistance, and integrated time-domain waveform viewing on its graphical user interface.
Key Features
- 6.5-digit resolution (100 nV / 10 fA minimum resolutions)
- Wide bipolar (4-quadrant) voltage/current ranges (±210 V / ±3 A DC, ±10.5 A pulsed)
- Ultra-low noise filter (10 µVrms, 1 nV/√Hz at 10 kHz)
- Intuitive 4.3-inch color LCD graphical user interface
- 4.5-digit voltage/current monitor
- Time-domain waveform viewer for quick validation
- Precision 1 mHz - 10 kHz arbitrary waveform generation
- Flexible programmable output resistance function
- Remote control via PC-based PathWave BenchVue software or LXI-compliant web browser
Applications
- High-precision analog IC and circuit testing
- Medical device applications and testing
- Solar cell evaluation and interface circuitry
- Research and educational environments
- Advanced materials testing
- Battery management system development
Included Accessories
- Power cable
- USB cable
- Quick Reference Guide (English)
Specifications
| Series | B2960B Series |
