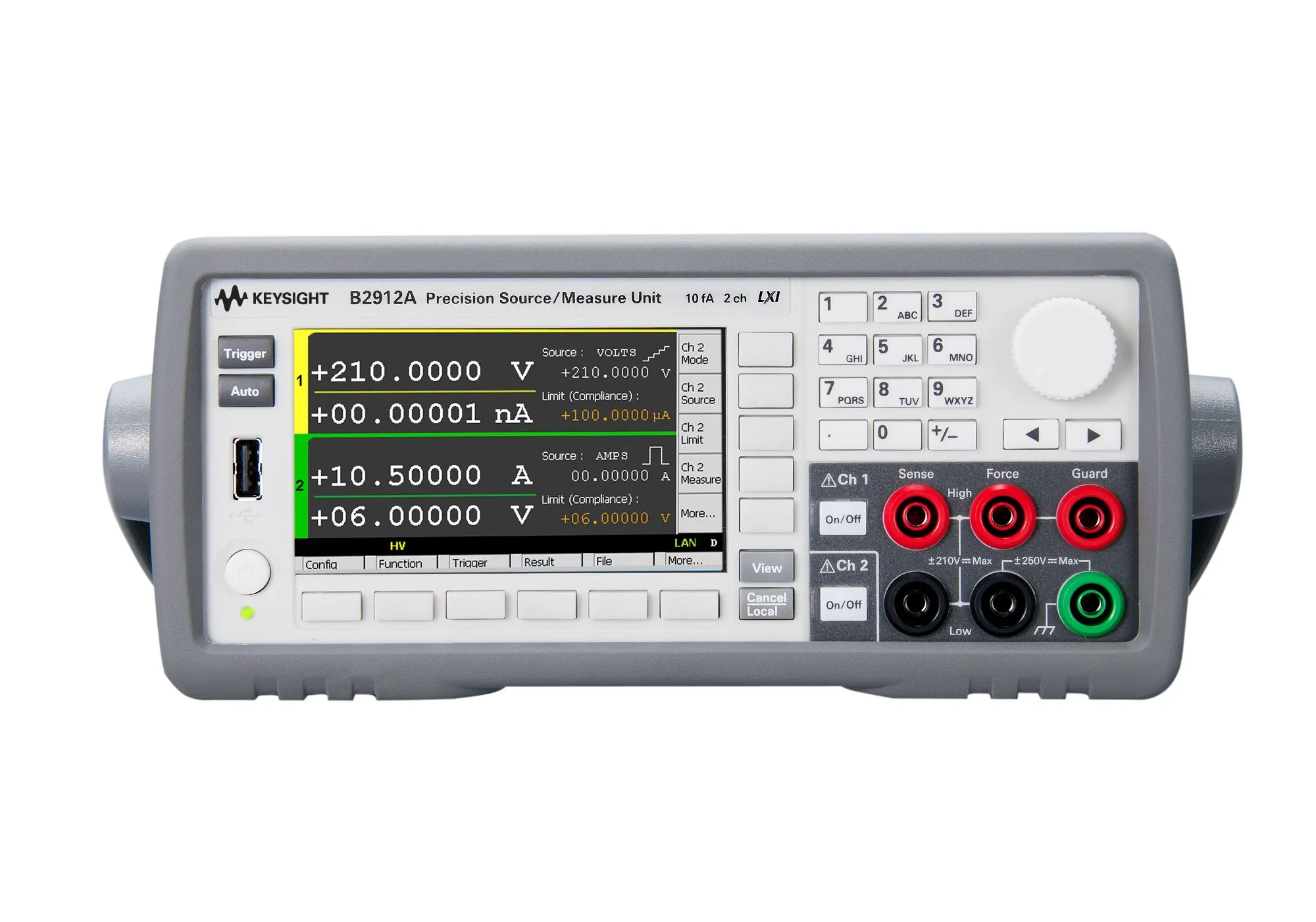

Keysight B2912A Precision Source/Measure Unit

Overview

The Keysight B2912A is a 2-channel precision source/measure unit ideal for versatile IV testing across research, development, and manufacturing environments. As part of the B2900A Series, it provides excellent precision with 100 nV / 10 fA sourcing and measurement resolution, along with broad voltage coverage up to 210 V and current capability of 3 A DC or 10.5 A pulsed. The instrument features a user-friendly color LCD graphical interface and multiple viewing modes for efficient test, debug, and characterization work.

Key Features

• 2-channel configuration for multi-device testing
• 100 nV / 10 fA sourcing and measurement resolution (6.5-digit)
• Voltage range: ±210 V; Current range: ±3 A DC / ±10.5 A pulsed
• Color 4.3-inch front panel display with Single, Dual, Graph, and Roll view modes
• High-resolution arbitrary waveform generation (AWG) with 10 microsecond minimum interval
• High-speed digitizing: up to 100,000 points/second sampling rate
• Multiple connectivity: GPIB, USB, LAN (LXI-C)
• Supports SCPI commands for easy code migration

Applications

• Optical devices (laser diodes, photodiodes)
• Organic devices (OLEDs)
• Photovoltaic (solar) cells
• Nanotechnology materials
• Power management devices (LDOs)
• Semiconductor devices (FETs, transistors)
• Discrete components (resistors, diodes, varistors)

Included Accessories

• Power cable
• USB cable
• Quick Reference (English)
• Product Reference CD-ROM (PDF manuals, measurement software, drivers)
• EasyEXPERT group+ Software
• Keysight I/O Library Suite
• BenchVue software license
