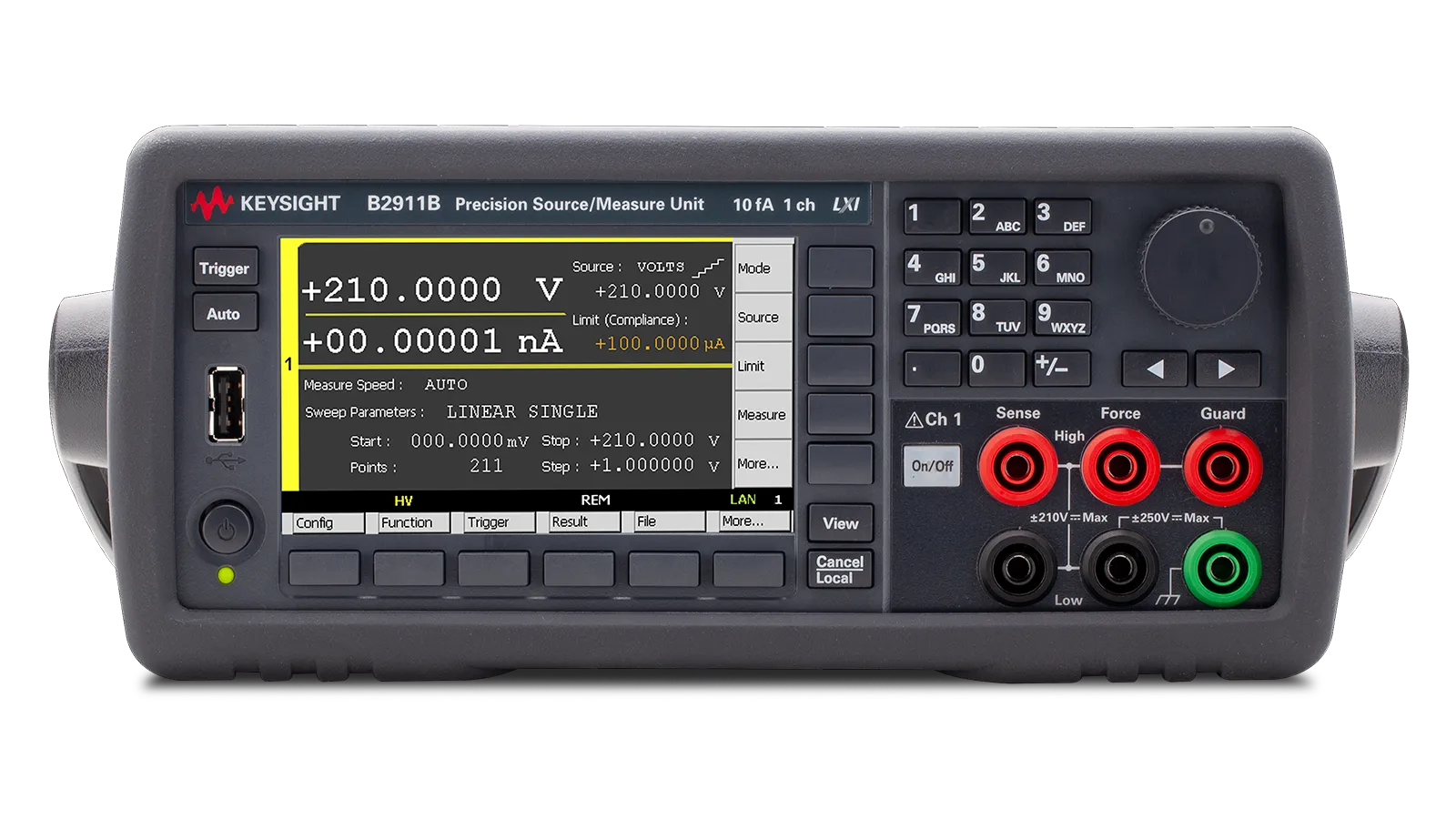

Keysight B2911B Precision Source/Measure Unit

Overview

The Keysight B2911B is a precision source/measure unit designed for accurate IV (current versus voltage) measurement tasks. It features integrated 4-quadrant sourcing and measuring capabilities, allowing users to source and measure both voltage and current without changing connections. With voltage coverage up to ±210 V and current up to ±3 A DC (±10.5 A pulsed), the B2911B is ideal for semiconductor characterization, component testing, and device evaluation across research, development, and manufacturing environments.

Key Features

• Integrated 4-quadrant sourcing and measuring capabilities
• High resolution: 10 fA current and 100 nV voltage sourcing and measurement
• Voltage range: ±210 V; Current range: ±3 A DC / ±10.5 A pulsed
• User-friendly 4.3-inch color LCD display with graphical and numerical view modes
• 10 microsecond digitizing capability for transient phenomenon capture
• Multiple connectivity options: USB 2.0, LAN, GPIB, and digital I/O
• Supports conventional and default SCPI commands for code compatibility
• Compact form factor for easy rack and stack integration

Applications

• Optical devices (laser diodes, photodiodes)
• Organic devices (OLEDs)
• Photovoltaic (solar) cells
• Nanotechnology materials
• Power management devices (LDOs)
• Semiconductor devices (FETs, transistors)
• Discrete components (resistors, diodes, varistors)

Included Accessories

• Power cable
• USB cable
• Quick Reference (English)
