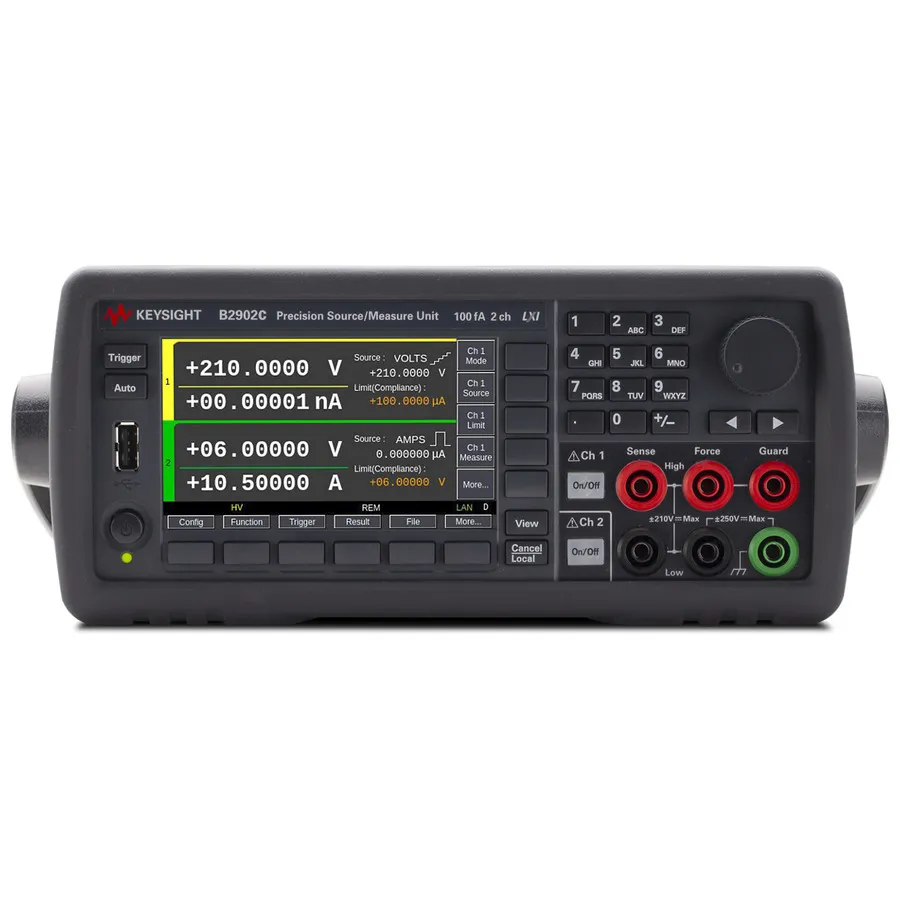

Keysight B2902C Source Measure Unit

Overview

The Keysight B2902C is a versatile dual-channel precision source/measure unit optimized for accurate voltage and current sourcing and measurement in laboratory, R&D, and automated testing environments. It supports maximum voltage of ±210 V and current capabilities up to ±3 A DC or ±10.5 A pulsed, accommodating a wide range of device testing requirements including semiconductors, passive components, and precision electronic devices. The dual-channel capability allows independent operation on two devices simultaneously.

With measurement resolution down to 100 fA for current and 100 nV for voltage, the B2902C offers excellent precision. Its integrated four-quadrant functionality simplifies complex IV measurement setups, removing the need for multiple separate instruments. Built-in arbitrary waveform generation and sweep functions—including linear, logarithmic, and pulsed sweeps—provide extensive flexibility for electrical characterization with support for up to 100,000 programmable steps.

Key Features

• Dual-channel independent operation with independent front and rear panel access
• Maximum 210 V output, 3 A DC / 10.5 A pulsed current
• 6.5-digit measurement resolution with 10 fA/100 nV source and measurement precision
• Integrated 4-quadrant voltage and current sourcing and measurement
• 4.3-inch color LCD graphical interface with Single, Dual, and Graph viewing modes
• Arbitrary waveform generation with up to 100,000 programmable steps
• 50,000 points per second digitizing capability
• USB 2.0, LAN, GPIB, and digital I/O connectivity
• Compact 2U form factor (88 mm × 213 mm × 450 mm)

Applications

• Semiconductor device characterization and testing
• Optical device testing (laser diodes, photodiodes)
• Organic device testing (OLEDs)
• Photovoltaic cell characterization
• Power management device testing (LDOs, voltage regulators)
• Component testing (FETs, transistors, diodes, varistors)

Included Accessories

• Power cable
• USB cable
• Quick Reference guide (English)
