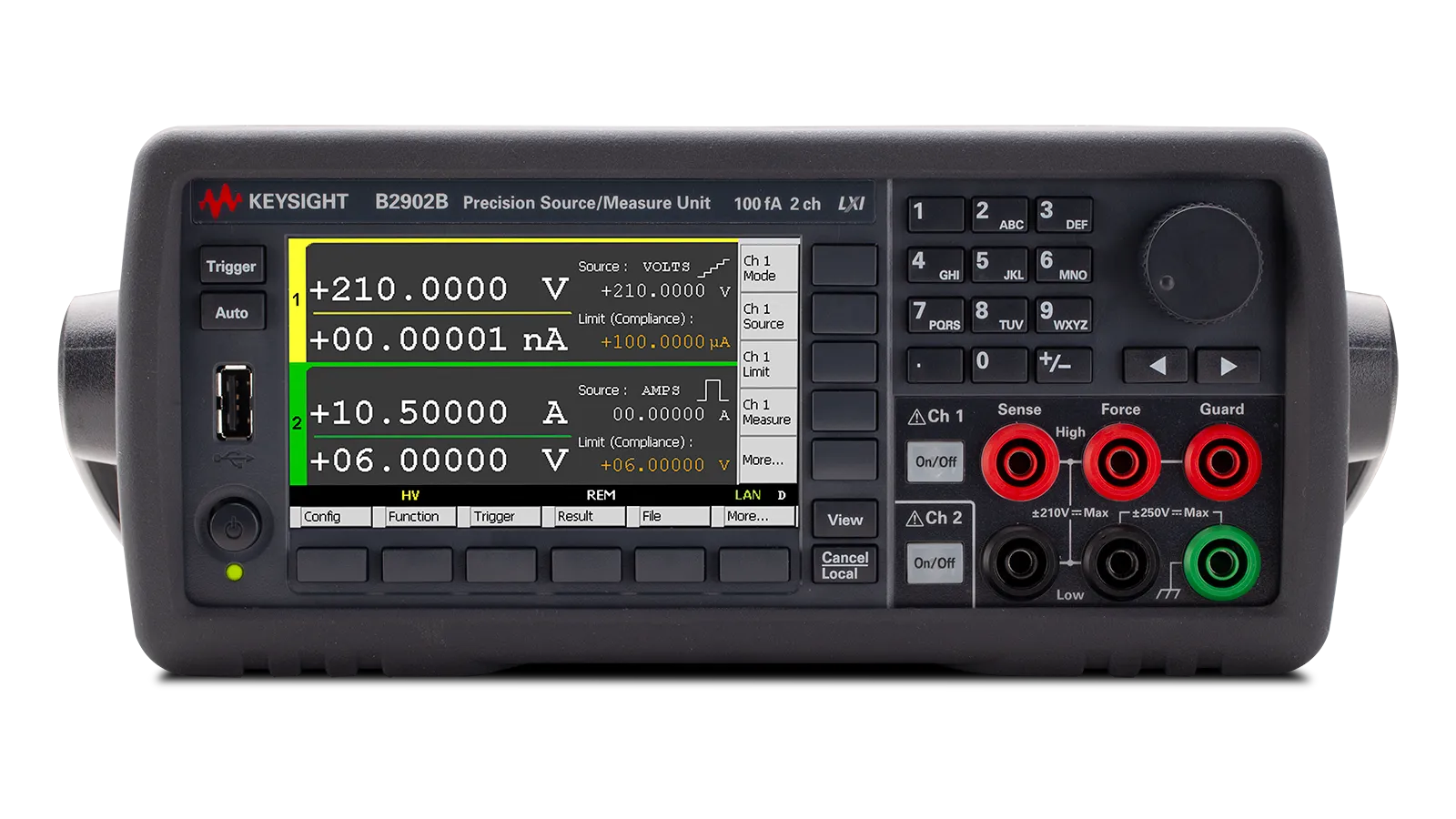

Keysight B2902B Precision Source/Measure Unit

Overview

The Keysight B2902B is a 2-channel, compact and cost-effective Precision Source/Measure Unit (SMU) featuring an innovative user interface designed for I-V (current versus voltage) measurement without requiring PC programming. It offers a maximum voltage of ±210 V, current capability of ±3 A DC and ±10.5 A pulsed, with ultra-high sourcing and measurement resolution down to 10 fA and 100 nV. The B2902B is ideal for a wide variety of I-V measurement tasks requiring both high resolution and accuracy.

The device features a user-friendly front panel GUI with a 4.3-inch color LCD display supporting both graphical and numerical view modes, enabling quick and easy performance of measurements directly from the instrument. The integrated 4-quadrant source and measurement capabilities simplify I-V measurements and eliminate the need for configuring multiple instruments. Minimum 10 microsecond digitizing capability captures low-frequency transient phenomena, while superior measurement throughput and conventional SCPI command support enable efficient production test integration.

Key Features

• 2-channel configuration with simultaneous dual-channel capabilities
• 210 V maximum voltage and ±3 A DC (±10.5 A pulsed) current sourcing
• 10 fA current measurement and 100 nV voltage sourcing resolution
• Integrated 4-quadrant sourcing and measuring capabilities
• Innovative GUI with 4.3-inch color LCD display for intuitive operation
• Single, dual, and graph view modes for flexible data visualization
• Arbitrary Waveform Generation with 10 microsecond digitizing interval
• Multiple software control options including PathWave BenchVue
• USB 2.0, LAN, GPIB, and digital I/O interfaces
• Conventional and default SCPI command support

Applications

• Optical devices (laser diodes, photodiodes)
• Organic devices (OLEDs)
• Photovoltaic (solar) cells
• Nano-technology materials and devices
• Power management devices (LDOs)
• Semiconductor devices (FETs, transistors)
• Resistors, diodes, varistors, and other discrete components

Included Accessories

• Power cable
• USB cable
• Quick Reference (English)
