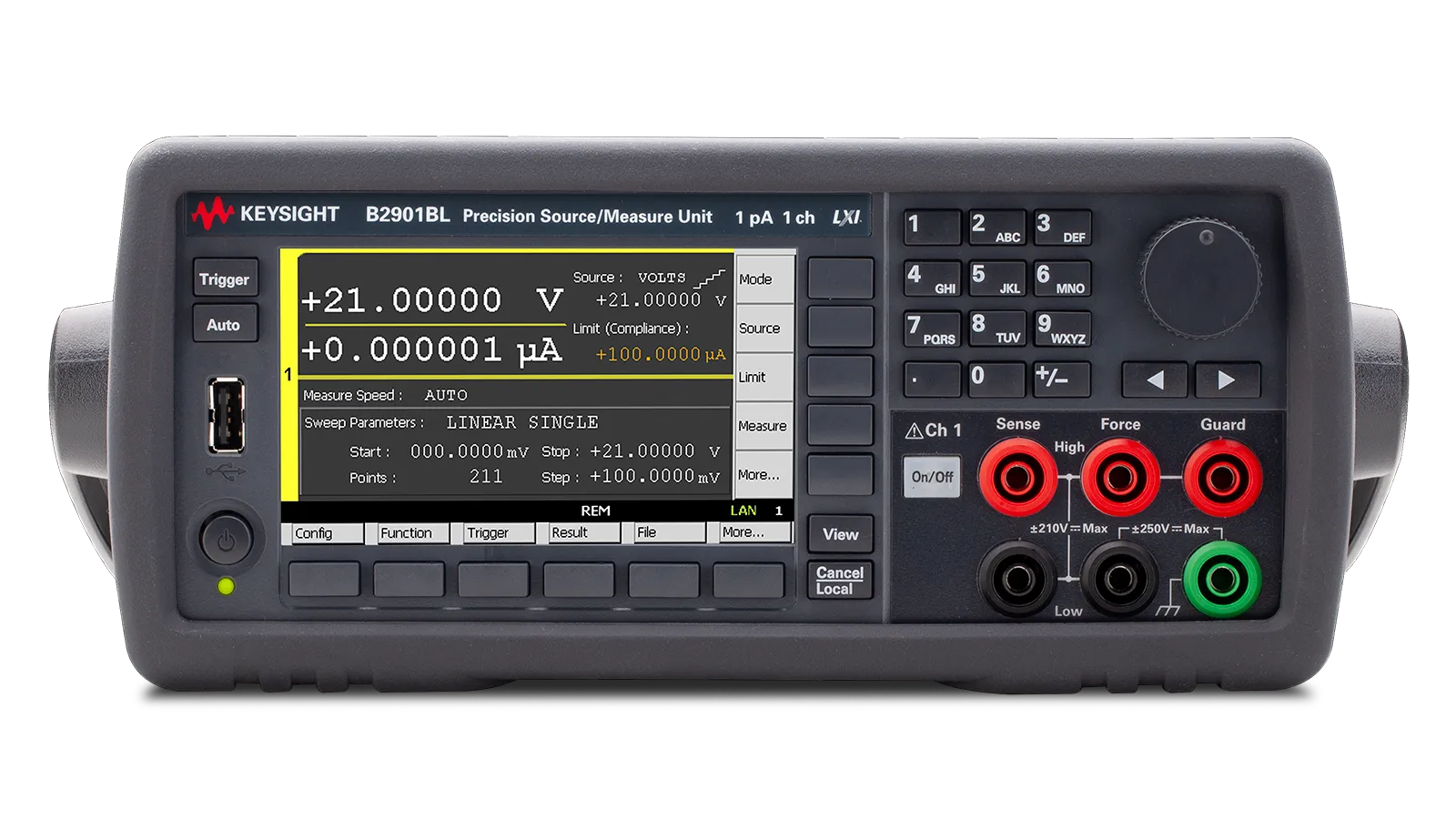

Keysight B2901BL Precision Source/Measure Unit
Request a quote
Keysight B2901BL is a bench-top SMU with 4-quadrant sourcing (210 V, 3 A DC / 10.5 A pulse), 10 fA/100 nV resolution, and 4.3" color display.
Product details
| Model | B2901BL |
| Manufacturer | Keysight |
| Category | Source Measure Units |
| Availability | Made to order |
Description
Overview
The Keysight B2901BL is a compact and cost-effective bench-top Precision Source/Measure Unit (SMU) from the B2900BL Series with integrated 4-quadrant sourcing and measuring capabilities. Designed for I/V characterization tasks requiring high resolution and accuracy, it supports measurements up to ±210 V and ±3 A DC (±10.5 A pulsed).
Key Features
- Integrated 4-quadrant sourcing and measuring capabilities
- High resolution: 10 fA / 100 nV sourcing and measurement
- Measurement range: ±210 V, ±3 A DC / ±10.5 A pulsed
- 10 microsecond digitizing interval for low-frequency phenomena capture
- User-friendly 4.3" color LCD display with graphical and numerical modes
- PC-based control software for remote measurement operation
- SCPI command support for conventional and advanced SMU programming
- Small form factor with USB 2.0, LAN, GPIB, and digital I/O interfaces
Applications
- Optical device characterization (laser diodes, photodiodes)
- Organic device testing (OLEDs)
- Photovoltaic and solar cell analysis
- Nano-technology material characterization
- Power management device testing (LDOs)
- Semiconductor device analysis (FETs, transistors)
- Passive component testing (resistors, diodes, varistors)
Included Accessories
- Power cable
- USB cable
- Quick Reference (English)
Specifications
| High Frequency (range) | DC <= 1kHz |
| Series | B2900BL Series |
