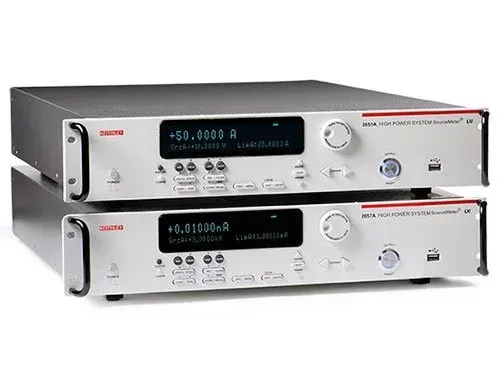

Keithley 2651A SourceMeter

Overview

The Keithley 2651A is a high-power SourceMeter SMU instrument designed for characterizing and testing high current and high power electronics. It combines four-quadrant voltage and current sourcing and loading capabilities with precision voltage and current measurement in a single instrument, making it suitable for semiconductors, power devices, LEDs, DC-DC converters, batteries, and solar cells.

With a wide dynamic range providing 50A current capability at ±40V, 100fA current resolution, and 100nV voltage resolution, the 2651A enables precise characterization of power devices and transient behavior. Multiple units can be combined through the TSP-Link interface for expanded system capabilities.

Key Features

• Four-quadrant source/measure: ±40V, ±50A (2000W pulsed / 200W DC)
• Ultra-high resolution: 100fA current / 100nV voltage measurement
• Built-in web browser-based software for remote control
• TSP (Test Script Processing) technology for flexible test programming
• TSP-Link channel expansion for connecting multiple units (up to 32 channels)
• Multiple power configurations available for parallel/series operation
• Integrated fixtures and accessories for high-power device testing

Applications

• Semiconductor device characterization and testing
• Power semiconductor breakdown and leakage testing to 3kV
• High brightness LED (HBLED) characterization
• GaN and SiC compound semiconductor device testing
• Photovoltaic and battery characterization
• High-speed digitization and transient analysis
• Electromigration studies
• Junction temperature characterization
