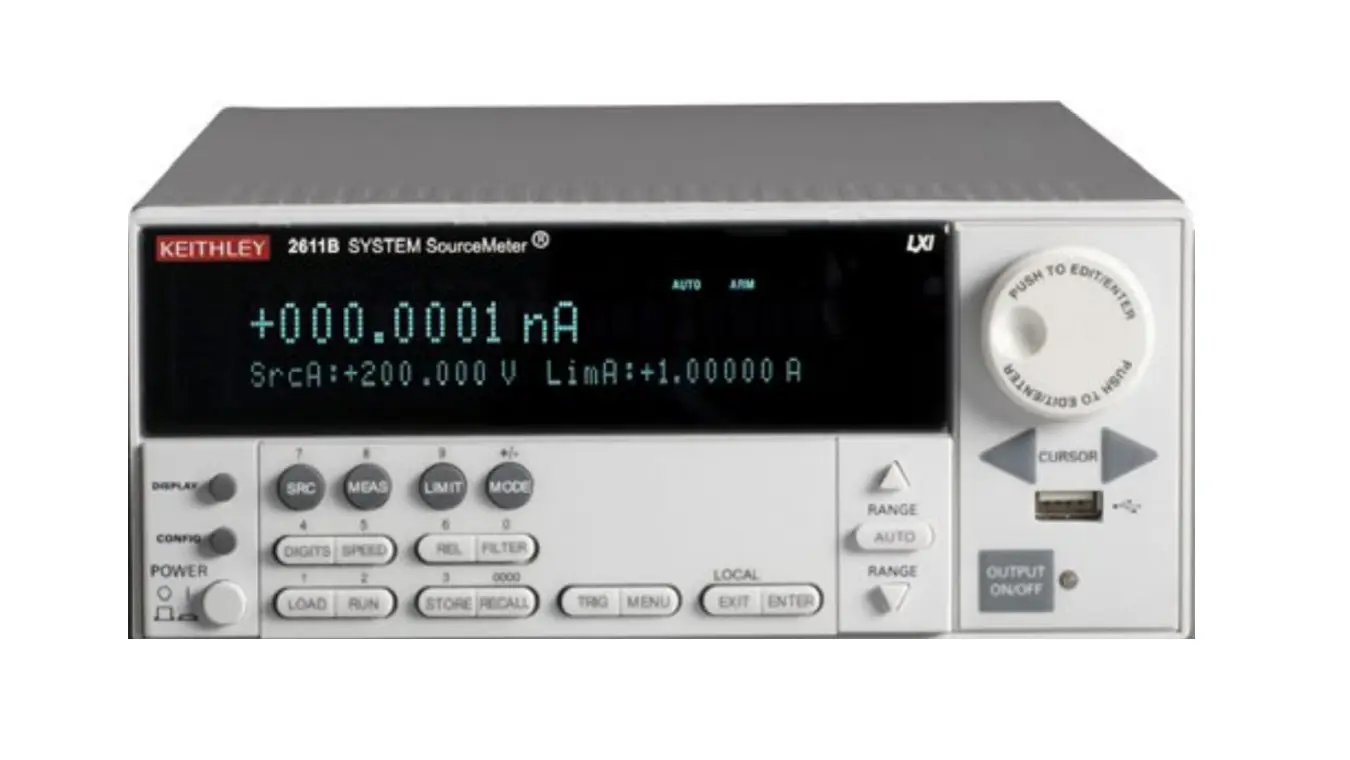

Keithley 2611B SourceMeter SMU Instrument
Request a quote
Keithley 2611B single-channel SourceMeter SMU delivers 200V/1.5A DC output with 100fA/100nV resolution and integrated TSP test automation.
Product details
| Model | 2611B |
| Manufacturer | Keithley |
| Category | Source Measure Units |
| Availability | Made to order |
Description
Overview
The Keithley 2611B is a single-channel SourceMeter SMU instrument from the Series 2600B family. It combines a precision power supply, true current source, 6.5-digit DMM, arbitrary waveform generator, pulse generator, and electronic load into a single integrated instrument. Designed for I-V characterization and automated production test applications, the 2611B offers 200V/1.5A DC output with 10A pulse capability and outstanding measurement resolution.
Key Features
- Single-channel 4-quadrant voltage/current source and measure with 6.5-digit resolution
- Maximum voltage: 200V; Maximum current: 1.5A DC / 10A pulse
- Measurement resolution: 100 fA (current) / 100 nV (voltage)
- Built-in web browser-based control accessible from any computer worldwide
- Keithley IVy mobile app support for Android plug-and-play I-V testing
- TSP (Test Script Processing) technology for embedded test program execution
- TSP-Link expansion for multi-channel parallel test without a mainframe
- Connectivity: USB 2.0, LXI-C, GPIB, RS-232, and digital I/O
- Software emulation for Keithley 2400 SourceMeter SMU
Applications
- Bench-top I-V characterization of semiconductors and components
- Automated production test and quality assurance
- Component and materials characterization
- Device reliability and performance testing
Specifications
| High Frequency (range) | 10MHz <= 100MHz |
| Number of Channels | 1 Channel |
| Maximum Current | 1.5 A |
| Maximum Voltage | 200 V |
| Maximum Power | 30 W |
