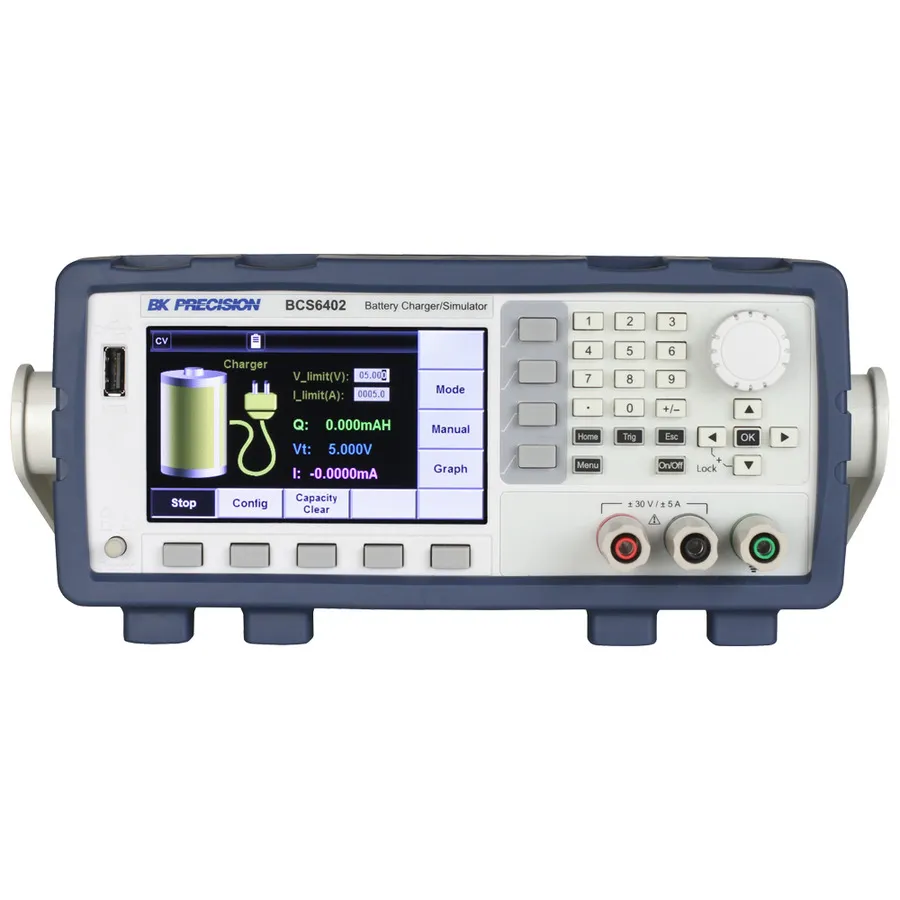

B&K Precision BCS6402 Battery Simulator and DC Power Supply
Request a quote
B&K Precision BCS6402 is a single-channel battery simulator and DC power supply with ±30 V output, 150 W power rating, and specialized charge, discharge, and simulation modes.
Product details
| Model | BCS6402 |
| Manufacturer | B&K Precision |
| Category | Source Measure Units |
| Availability | Made to order |
Description
Overview
The B&K Precision BCS6402 is a single-channel battery simulator and DC power supply optimized for testing batteries and battery-operated devices. This instrument features source/sink capabilities, a bipolar output, and variable output impedance with dedicated battery charge, discharge, and simulation modes. The BCS6402 also serves as a precise DC power supply with fast transient response and low ripple/noise characteristics, offering higher voltage capability than the dual-channel BCS6401.
Key Features
- Single channel operation with high voltage capability
- Source or sink up to 150 W
- Bipolar output: ±30 V / ±15 V switchable
- Source or sink current up to 5 A
- Variable output impedance (0 Ω to 1 Ω)
- Low noise < 3 mVpp with fast load recovery time
- Compact 2U form factor
- Battery charge, discharge, and simulation test modes
- High 100 nA current readback resolution
- Multiple protection: OVP, OCP, OTP, and key-lock
- USB (USBTMC-compliant) and LAN interfaces
Applications
- Battery and battery-operated device testing
- Evaluation of batteries and charger circuits for cell phones, wearables, and IoT devices
- Device power supply emulation and testing
Included Accessories
- Calibration Certificate
- 3 Year Warranty
- AC Power Cord
Specifications
| Series | BCS Series |
| Display | 4.3 Color TFT |
| Input Voltage | 110/220 VAC |
| Interface | LAN, USB, System I/O |
| Number of Outputs | Single Output |
| Output Current | 5 A |
| Output Voltage | 30 V |
| Power Rating | 150 W |
| Special Features | Battery Charger/Simulator |
