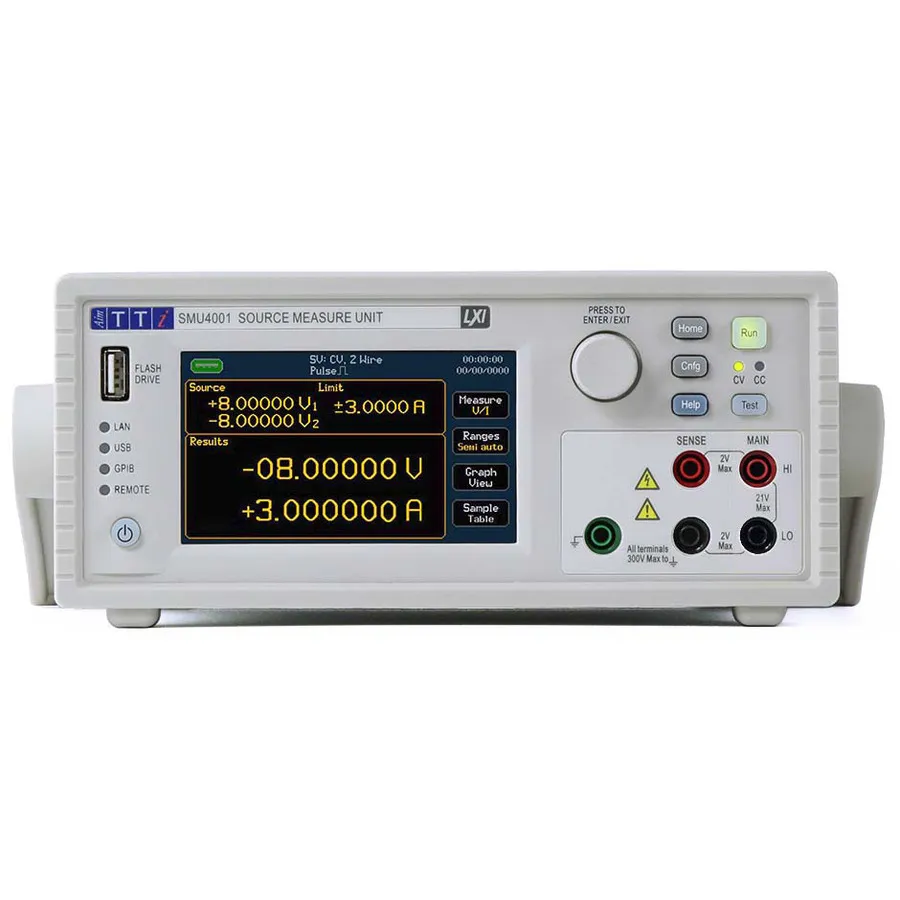

Aim TTi SMU4001 Source Measure Unit
Request a quote
Aim TTi SMU4001 is a four-quadrant source measure unit offering ±21V, 3A, 0.015% accuracy, and measurement speeds to 5k/s.
Product details
| Model | SMU4001 |
| Manufacturer | Aim TTi |
| Category | Source Measure Units |
| Availability | Made to order |
Description
Overview
The Aim TTi SMU4001 is a four-quadrant source measure unit providing simultaneous voltage and current sourcing and measurement capabilities. With ±21V maximum voltage output and 3A current capacity, it delivers 0.015% basic accuracy making it ideal for component characterization, power supply testing, and performance validation in industrial and educational environments.
Key Features
- Four-quadrant sourcing and sinking with ±21V maximum voltage and 3A current
- 0.015% basic accuracy with 6.5-digit resolution
- 0.1µV and 100fA resolution for precise measurements
- Fast measurement speeds up to 200µs (5k/s)
- Internal memory for up to 100k measurements and 100k program steps
- Eight EasySet pre-sets: Power Supply, Current Source, Load, Voltmeter, Ammeter, Ohmmeter, Insulation Resistance Meter, Leakage Current Meter
- Advanced sweep engine and math features for data analysis
- Multiple interfaces: LAN, LXI, USB, and optional GPIB
- Powerflex technology for full output power across voltage range
- Compact 2U half-rack form factor
Applications
- Component and device characterization
- Power supply and power circuit testing
- I-V curve measurement and analysis
- Load and source simulation
- Industrial R&D and production testing
- Educational laboratory demonstrations
Specifications
| Number of Channels | 2 Channel |
| Maximum Current | 3 A |
| Maximum Voltage | 20 V |
| Maximum Power | 25 W |
| Series | SMU4000 Series |
| Display | Touch Screen |
