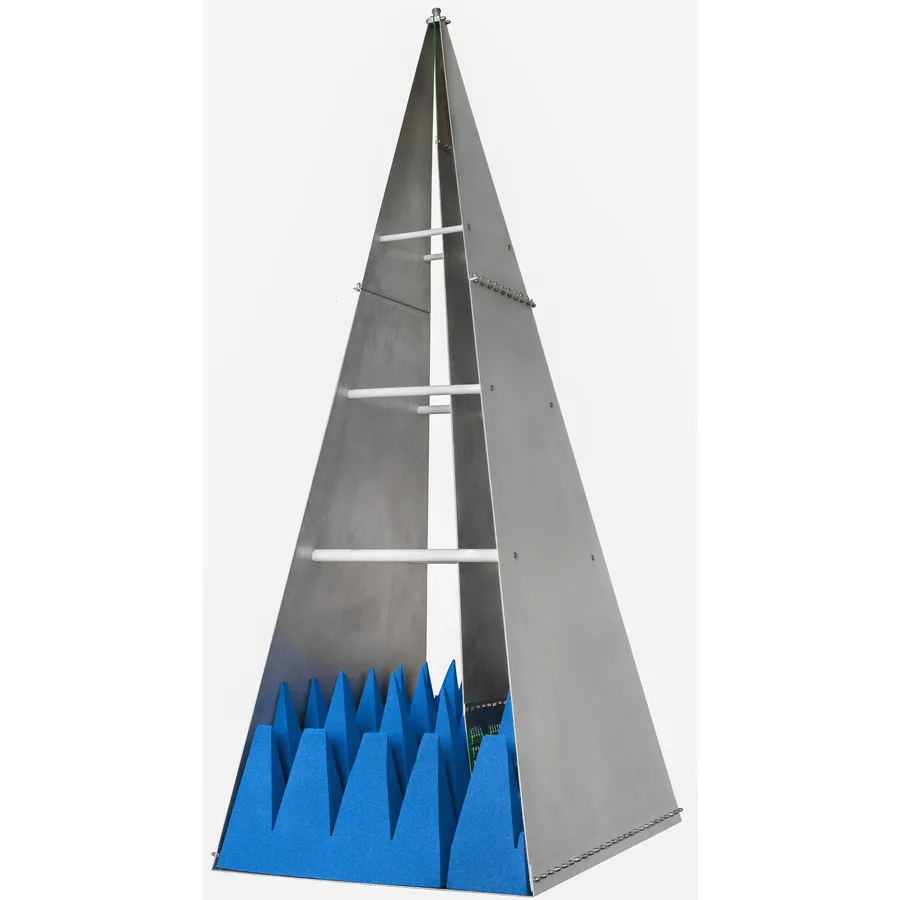

TekBox TBGTC1 GTEM Cell

Overview

The TekBox TBGTC1 is an open GTEM (Gigahertz Transverse Electromagnetic) cell for EMC pre-compliance testing. Unlike traditional TEM cells, GTEM cells operate efficiently at higher frequencies, supporting measurements from 0.009 MHz to 6 GHz, making them ideal for broadband radiated emissions and immunity characterization.

Key Features

• Frequency range: 0.009 MHz – 6 GHz
• N-female connectors, 50 Ω nominal impedance
• Maximum continuous RF input power: 600 W
• VSWR: 1:1.3 typical, 1:1.9 maximum
• Field uniformity: ±6 dB up to 3 GHz across 100 × 100 × 100 mm test volume
• Septum height: 250 mm at EUT board location
• Cell dimensions: 1452 × 780 × 520 mm, weight approximately 13 kg
• Maximum EUT size: 200 × 200 × 150 mm

Applications

• EMC pre-compliance testing and validation
• Radiated emissions and immunity measurements
• Design verification before formal certification testing
• Rapid assessment of EMC performance improvements
