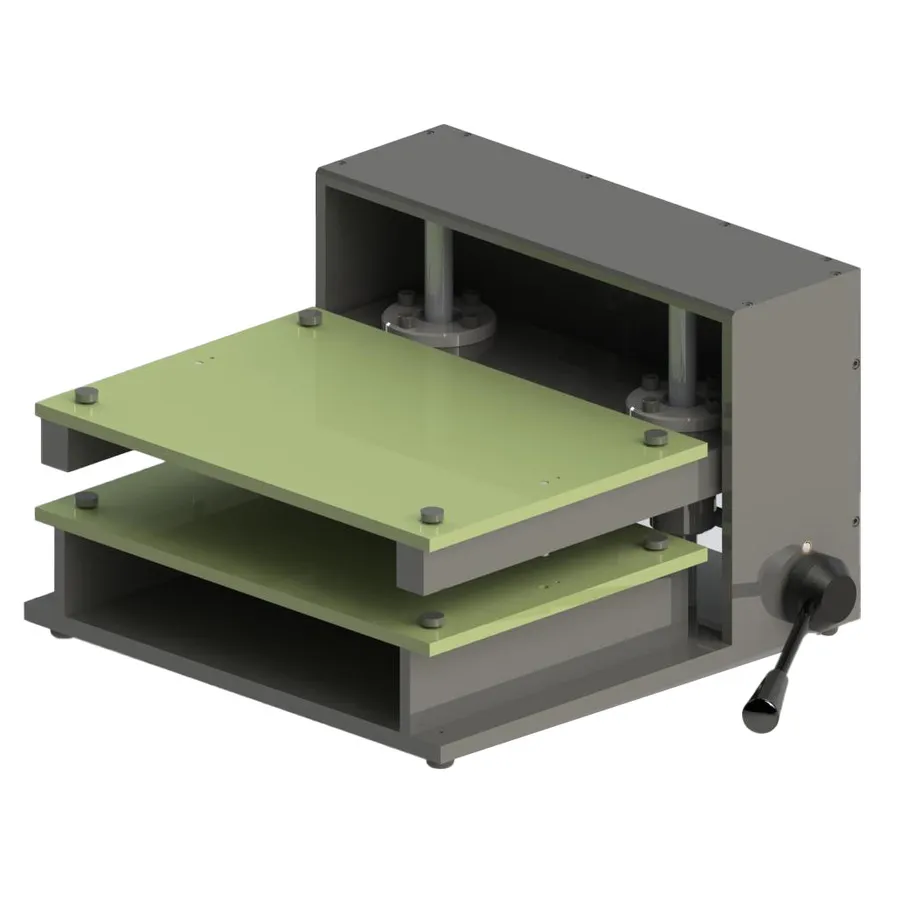

Cortek 1012M Mechanical Press Test Fixture
Request a quote
Cortek 1012M is a reusable mechanical press test fixture with 10" x 12" test area, interchangeable plates, and top/bottom probing for PCB and component testing.
Product details
| Model | 1012M |
| Manufacturer | Cortek |
| Category | Safety Test Fixtures |
| Availability | Made to order |
Description
Overview
The Cortek 1012M is a reusable mechanical press test fixture designed for printed circuit board and component testing. It provides simultaneous top and bottom side probing capabilities with interchangeable fixture plates that can be customized for different units under test (UUT), making it ideal for both research and production environments.
Key Features
- Test area: 10.0" x 12.0" (UUT may extend beyond)
- Maximum load: Standard up to 250 lbs
- Interchangeable top and bottom fixture plates for custom tooling
- Mechanical operation with linear vertical actuation
- Top and bottom side probing and access capability
- Fine pitch probing capability
- Solid aluminum and steel construction
- High accuracy, repeatability, and durability
Applications
- Printed circuit board (PCB) testing in R&D environments
- Production line testing and validation
- Component verification and validation
- Hipot electrical safety testing
Specifications
| Product Type | Test Fixture |
| Width | 15.5" |
| Depth | 16" |
| Height | 10" |
| Product Weight | 50 lb. |
| Alternate Product Number | 1012 |
