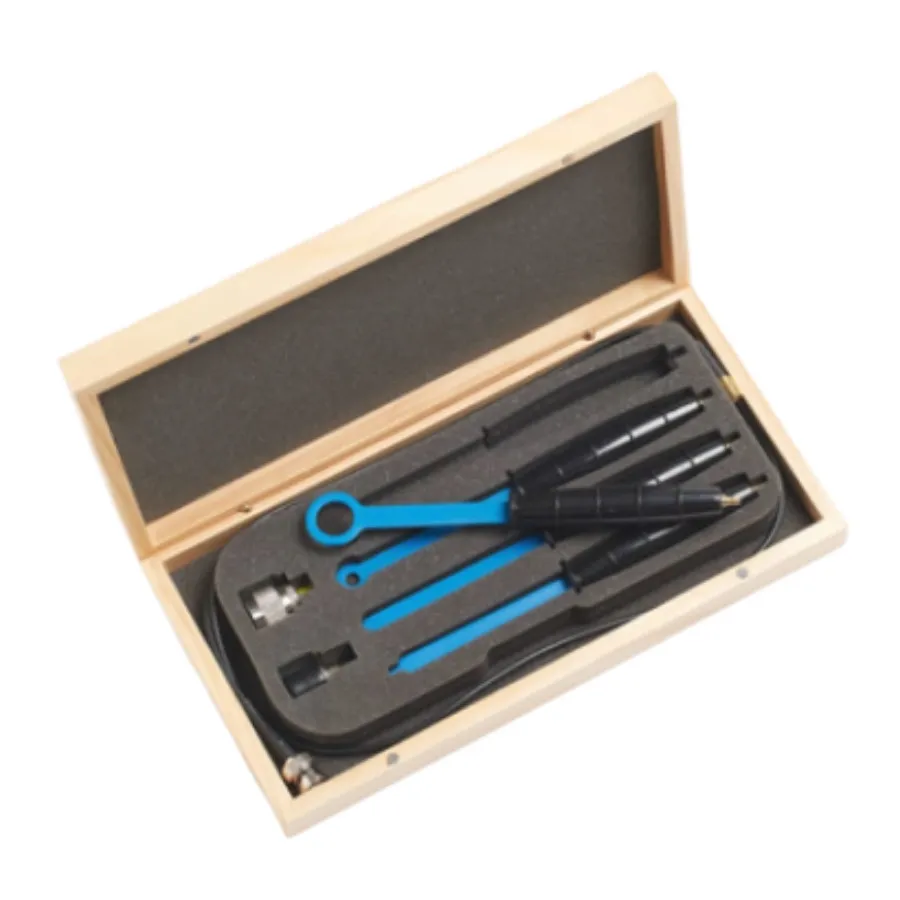

Tektronix EMI-NF-PROBE Near Field Probe Set
Request a quote
Tektronix EMI-NF-PROBE near field probe set for EMC pre-compliance testing up to 6 GHz with shielded loops and insulated rubber coating.
Description
Overview
The Tektronix EMI-NF-PROBE is a magnetic and electric field probe set designed for radiated emissions EMC pre-compliance measurements. This set of probes is used in the near field of sources of electromagnetic radiation to locate and identify potential sources of interference within electronic assemblies. The probes act like wideband antennas, picking up radiated emissions from components, PCB traces, housing openings, and other parts that could be emitting RF energy, and are typically connected to a spectrum analyzer.
Key Features
- Maximum frequency: 6 GHz
- Slim design for good access in tightly spaced components
- Shielded magnetic and electric field loops
- Insulated with rubber coating for safe handling
- Insensitive to hand proximity
Applications
- Radiated EMC measurement
- RF immunity testing
- Contactless relative measurement of RF signal chains
- Contactless relative measurement of oscillators and modulators
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
