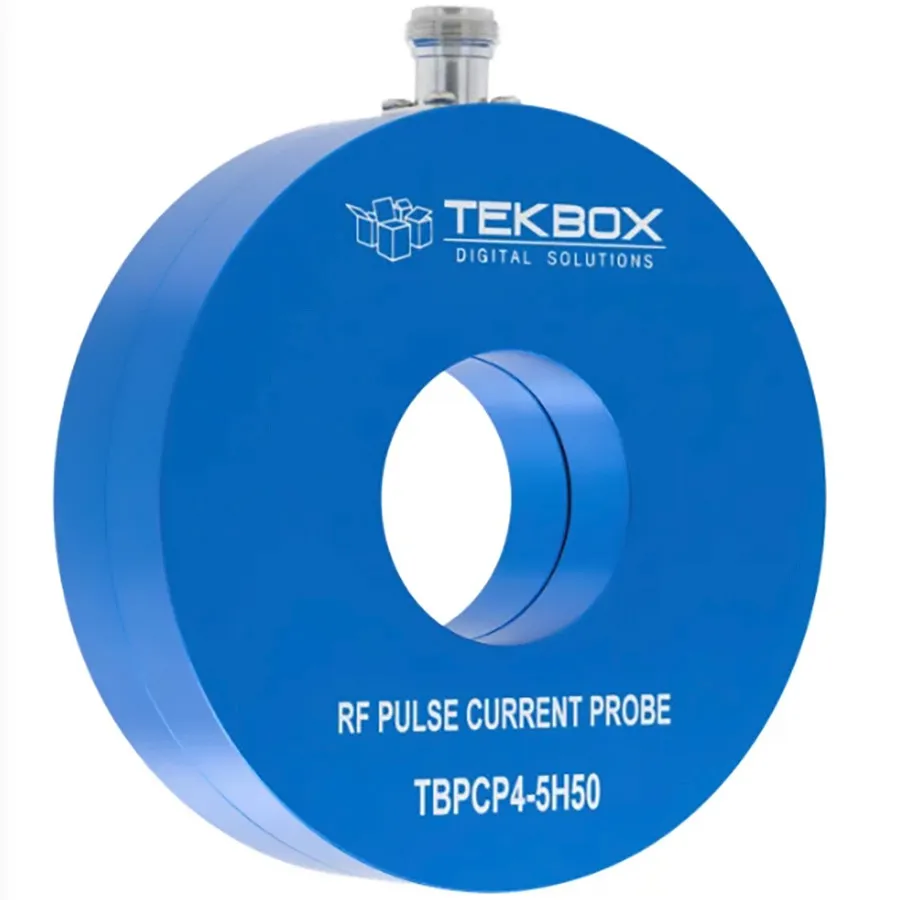

TekBox TBPCP4-5H50 RF Pulse Current Monitoring Probe
Request a quote
TekBox TBPCP4-5H50 RF pulse current monitoring probe with 5 Hz to 50 MHz bandwidth, 3500A peak current, and 0.1 V/A transfer impedance into 50Ω load.
Description
Overview
The TekBox TBPCP4-5H50 is an RF pulse current monitoring probe designed for surge and RF pulse current measurement applications in the time domain. With a characterized frequency range from 1 Hz to 100 MHz and a 3 dB bandwidth of 5 Hz to 50 MHz, the probe accurately measures dynamic current events in demanding environments.
Key Features
- 3 dB bandwidth: 5 Hz to 50 MHz (measured in 50 + 50 Ω loop)
- Peak current capacity: 3500A
- Transfer impedance: 0.1 V/A into 50 Ω load, 0.2 V/A into high Z
- Rise time: less than 9 ns
- Probe port impedance: 50 Ω
- Aperture diameter: 46 mm
- Connector: N female with supplied BNC-female coaxial adapter
Applications
- Surge current monitoring in time domain
- RF pulse current measurements
- EMI/EMC testing applications
Specifications
| Type | Current Probe |
| Frequency | 100 MHz |
| Series | TBPCP4 Series |
