TekBox TBPCP4-100H60 RF Pulse Current Monitoring Probe
Request a quote

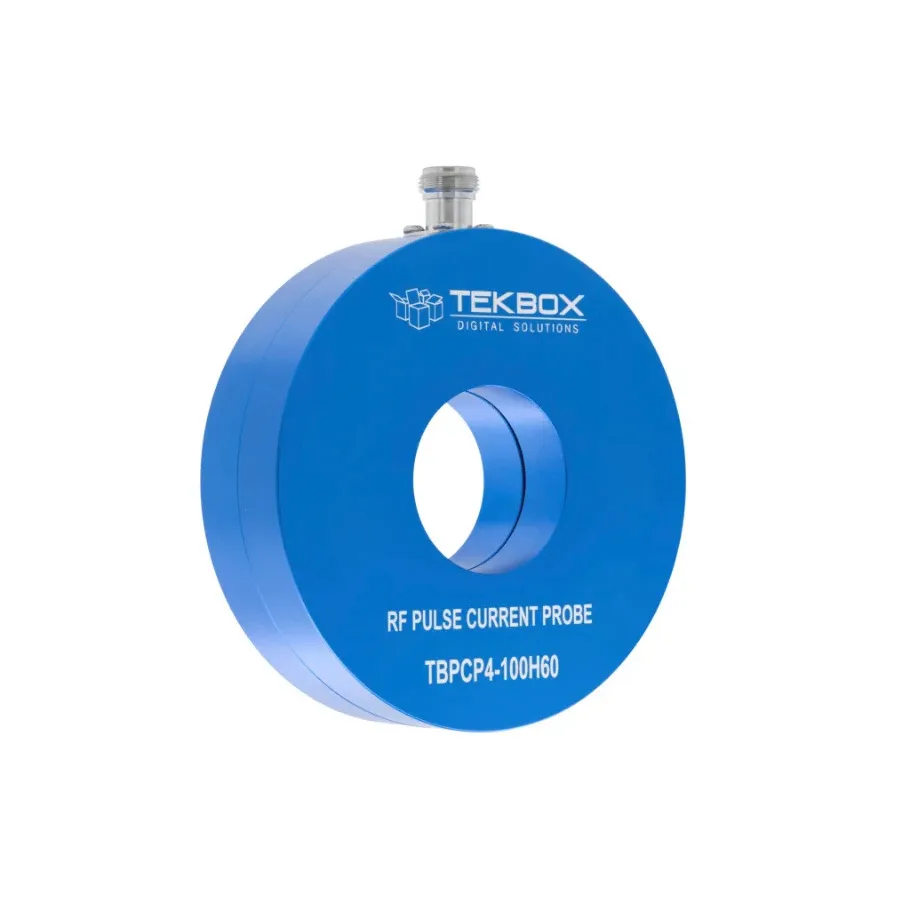

TekBox TBPCP4-100H60 is an RF pulse current monitoring probe with 130 Hz to 60 MHz bandwidth, 1000A peak current capacity, and 46 mm aperture for time-domain measurements.
Description
Overview
The TekBox TBPCP4-100H60 is an RF pulse current monitoring probe designed for surge and RF pulse current monitoring in the time domain. It features a characterized frequency range from 1 Hz to 100 MHz with a 3 dB bandwidth of 130 Hz to 60 MHz. The larger 46 mm aperture accommodates conductors in various applications while maintaining accurate transfer impedance of 0.5 V/A into 50 Ω loads and 1 V/A into high-impedance loads.
Key Features
- 3 dB bandwidth: 130 Hz to 60 MHz
- Maximum pulse current: 1000A
- Transfer impedance: 0.5 V/A (50 Ω), 1 V/A (high Z)
- Rise time: < 10 ns
- Aperture diameter: 46 mm
- Maximum RMS AC current: 10A
- Droop rate: 0.06 %/µs
- N female connector with BNC-female adapter included
Applications
- Surge current monitoring in time domain
- RF pulse current measurement and analysis
- Large conductor current measurement
Specifications
| Type | Current Probe |
| Frequency | 100 MHz |
| Series | TBPCP4 Series |
