TekBox TBPCP3-20H70 RF Pulse Current Monitoring Probe
Request a quote
TekBox TBPCP3-20H70 RF pulse current monitoring probe with 20–70 MHz bandwidth, 1500 A peak pulse capacity, and 0.25 V/A transfer impedance for general-purpose pulse measurements.
Description
Overview

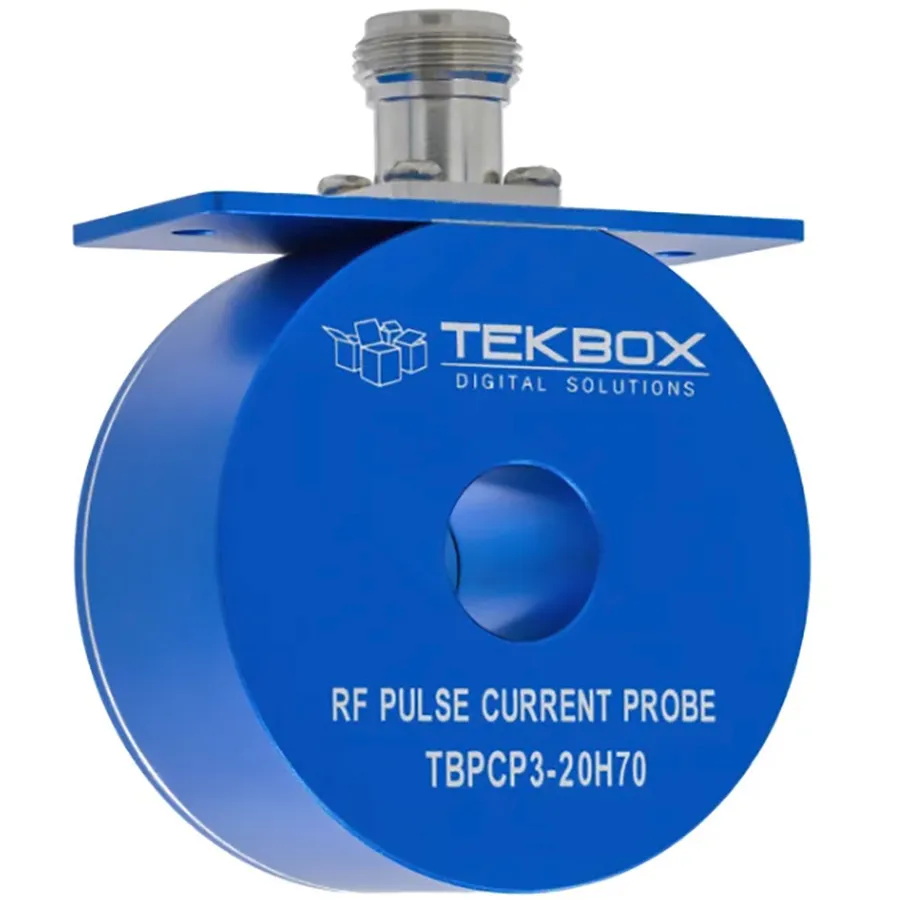

The TekBox TBPCP3-20H70 is a general-purpose RF pulse current monitoring probe with a 15 mm aperture, characterized from 0.1 Hz to 100 MHz. Featuring a 3 dB bandwidth of 20 Hz to 70 MHz and balanced transfer impedance, this probe is well-suited for time-domain surge and RF pulse current measurements across a broad range of industrial and laboratory applications. An N female connector with included BNC-female adapter enables flexible integration into test systems.
Key Features
- 3 dB bandwidth: 20 Hz to 70 MHz
- Transfer impedance: −12 dB Ohm (0.25 V/A into 50 Ω; 0.5 V/A high-Z)
- Maximum RMS AC current: 8 A
- Maximum pulse current: 1500 A
- Aperture diameter: 15 mm
- Rise time: less than 9 ns
- Droop rate: 6% per millisecond
- Connector: N female with BNC-female adapter included
- Weight: 320 g
Applications
- Surge current and transient monitoring
- RF pulse characterization and analysis
- Power electronics testing
- Industrial equipment EMC validation
Specifications
| Type | Current Probe |
| Frequency | 100 MHz |
| Series | TBPCP3 Series |
