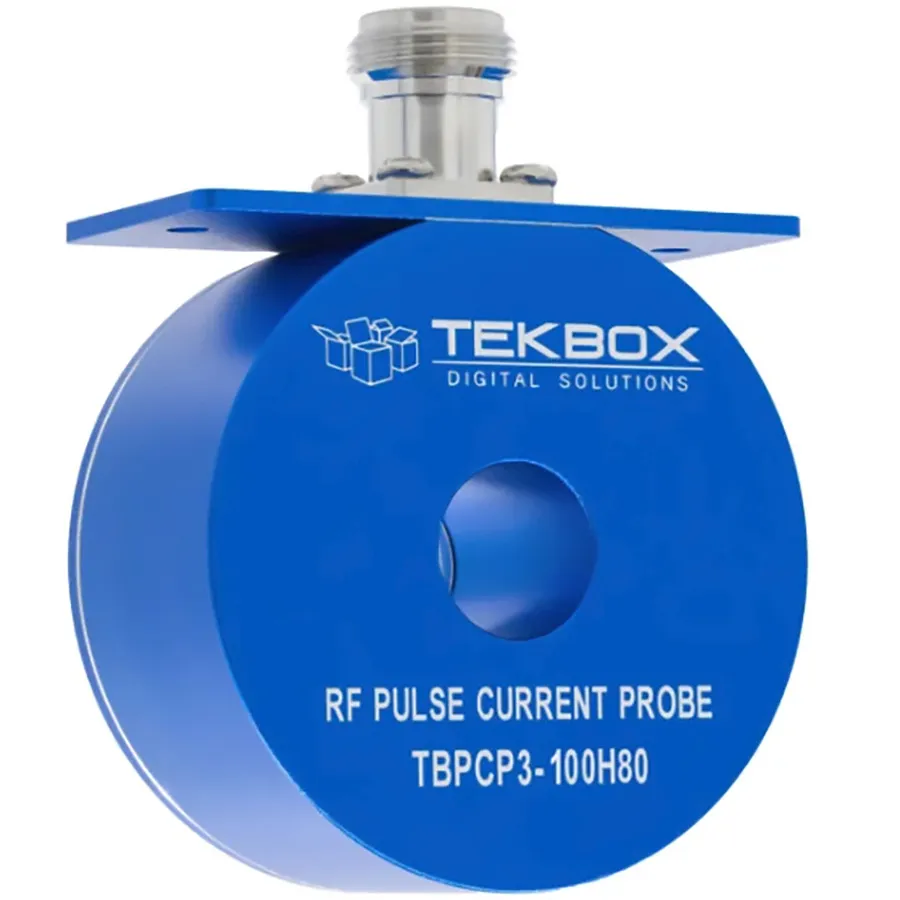

TekBox TBPCP3-100H80 RF Pulse Current Monitoring Probe
Request a quote
TekBox TBPCP3-100H80 RF pulse current monitoring probe with 100 Hz–80 MHz bandwidth, 600 A peak pulse capacity, and 0.5 V/A transfer impedance for sensitive RF measurements.
Description
Overview
The TekBox TBPCP3-100H80 is an RF pulse current monitoring probe with a 15 mm aperture, characterized from 0.1 Hz to 100 MHz. Featuring a 3 dB bandwidth from 100 Hz to 80 MHz and higher transfer impedance for improved sensitivity, this probe is designed for time-domain RF pulse and surge measurements in applications requiring extended high-frequency response. An N female connector with included BNC-female adapter allows flexible test setup integration.
Key Features
- 3 dB bandwidth: 100 Hz to 80 MHz
- Transfer impedance: −6 dB Ohm (0.5 V/A into 50 Ω; 1 V/A high-Z)
- Maximum RMS AC current: 3 A
- Maximum pulse current: 600 A
- Aperture diameter: 15 mm
- Rise time: less than 8 ns (maximum)
- Droop rate: 0.02% per microsecond
- Connector: N female with BNC-female adapter included
- Weight: 320 g
Applications
- High-frequency RF pulse current monitoring
- Wideband surge and transient measurement
- Communications equipment testing
- High-speed digital circuit characterization
Specifications
| Type | Current Probe |
| Frequency | 100 MHz |
| Series | TBPCP3 Series |
