TekBox TBPCP3-05H30 RF Pulse Current Monitoring Probe
Request a quote
TekBox TBPCP3-05H30 RF pulse current monitoring probe with 0.5–30 MHz bandwidth, 5000 A peak pulse capacity, and 0.05 V/A transfer impedance for high-current surge testing.
Description
Overview

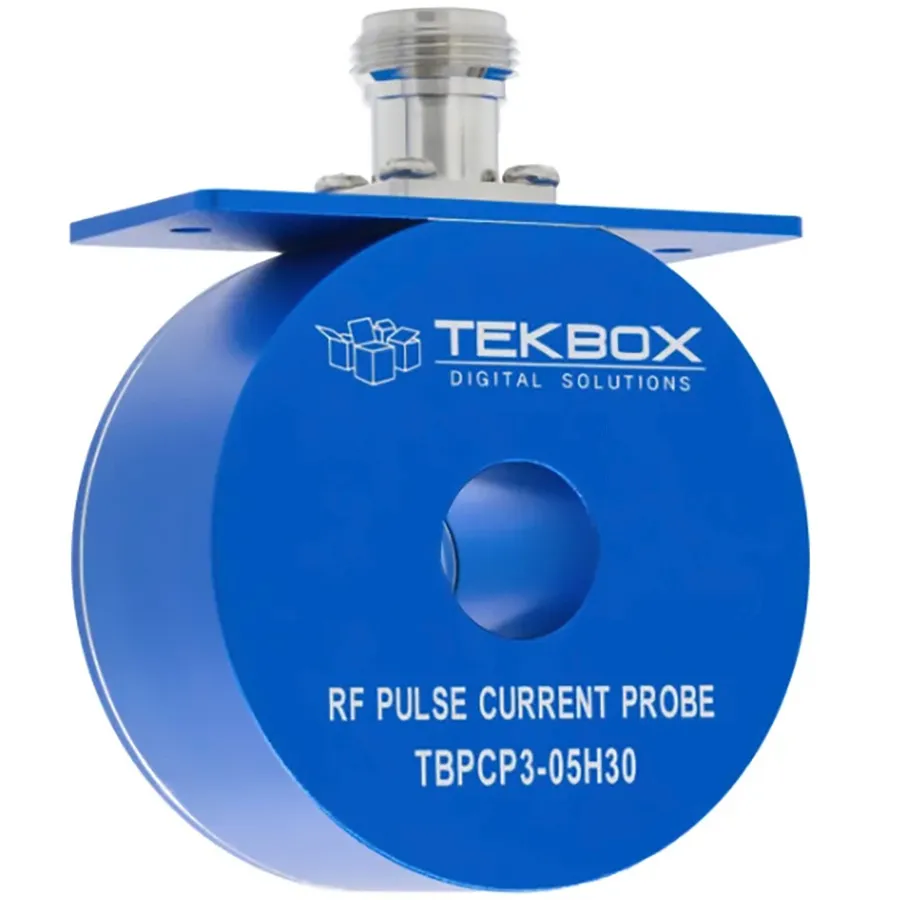

The TekBox TBPCP3-05H30 is a high-current RF pulse current monitoring probe with a 15 mm aperture, characterized from 0.1 Hz to 100 MHz. Featuring a 3 dB bandwidth of 0.5 Hz to 30 MHz and excellent low-frequency response, this probe is optimized for time-domain surge and RF pulse measurements requiring high current capacity. It comes supplied with an N female connector and includes a BNC-female coaxial adapter.
Key Features
- 3 dB bandwidth: 0.5 Hz to 30 MHz
- Transfer impedance: −26 dB Ohm (0.05 V/A into 50 Ω; 0.1 V/A high-Z)
- Maximum RMS AC current: 55 A
- Maximum pulse current: 5000 A
- Aperture diameter: 15 mm
- Rise time: less than 10 ns
- Droop rate: 0.12% per millisecond
- Connector: N female with BNC-female adapter included
- Weight: 320 g
Applications
- High-current surge and pulse monitoring
- Power supply transient testing
- Motor drive current analysis
- Lightning and ESD simulation measurements
Specifications
| Type | Current Probe |
| Frequency | 100 MHz |
| Series | TBPCP3 Series |
