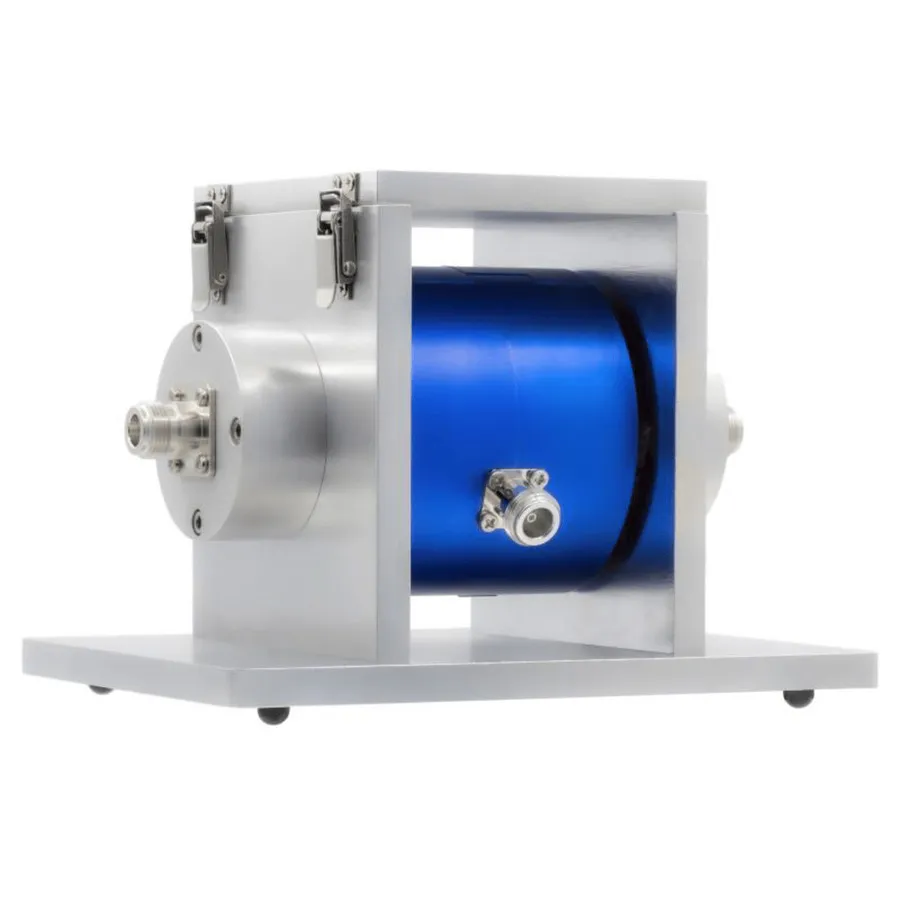

TekBox TBBCI1-CAL Current Injection Probe Calibration Fixture
Request a quote
TekBox TBBCI1-CAL is a calibration fixture for bulk current injection probes, used with VNA or spectrum analyzers to measure transfer impedance.
Description
Overview
The TekBox TBBCI1-CAL is a calibration fixture designed for the TBBCI1 series of Bulk Current Injection (BCI) probes. It is used in combination with a Vector Network Analyzer (VNA) or Spectrum Analyzer equipped with a tracking generator to measure the transfer impedance and insertion loss of BCI probes.
Key Features
- Designed for use with VNA or Spectrum Analyzer with tracking generator
- 50 Ohm termination
- Enables periodic inspection and health checks of probes
- Used for calibration of conducted immunity test setups
Applications
- Periodic inspection of BCI probes
- Health checks after probe handling or transport
- Verification of ferrite core integrity after mechanical stress
- Calibration of conducted immunity test setups
Specifications
| Series | TBBCI1 |
