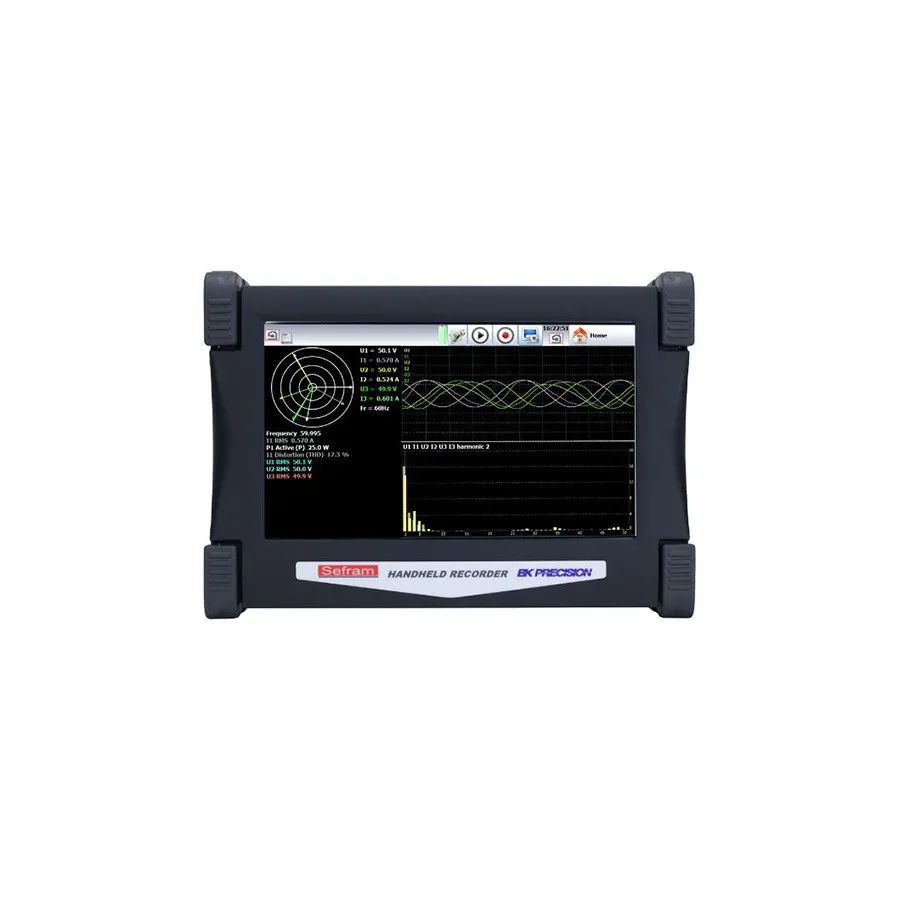

B&K Precision DAS60-P High Speed Multi-Function Recorder
Request a quote
B&K Precision DAS60-P is a high-speed multi-function recorder with 1 MSa/s sampling, 6 analog channels, 64 GB memory, and 9.5-hour battery life.
Product details
| Model | DAS60-P |
| Manufacturer | B&K Precision |
| Category | Recorders |
| Availability | Made to order |
Description
Overview
The B&K Precision DAS60-P is a high-speed multi-function recorder designed for applications ranging from small sensor signal logging to electrical power analysis. It features a 10-inch touchscreen display, CAT III 600 V isolation rating, and up to 64 GB of internal solid-state memory with 9.5-hour battery life, making it suitable for portable field measurements and maintenance diagnostics.
Key Features
- 1 MSa/s sample rate in memory mode with 2 µs sampling interval in file mode
- 6 analog input channels with 14-bit resolution
- Wide input range from ±5 mV to ±500 V RMS
- 64 GB internal solid-state memory for extended recording periods
- 9.5-hour battery life for portable field work
- 10-inch touchscreen TFT display with unlimited data scrolling and zoom
- 16 logic input channels for mixed-signal capture
- CAT III 600 V rated isolated channels
- Temperature measurement support for thermocouples and Pt100/Pt1000 sensors
- 2 USB host ports and LAN interface for data transfer
- Optional 110 mm thermal printer for on-site documentation
Applications
- Measure signals from small sensors to large electrical systems
- Maintenance and failure analysis
- Power analysis of single and three-phase systems
Specifications
| Series | DASX0 Series |
