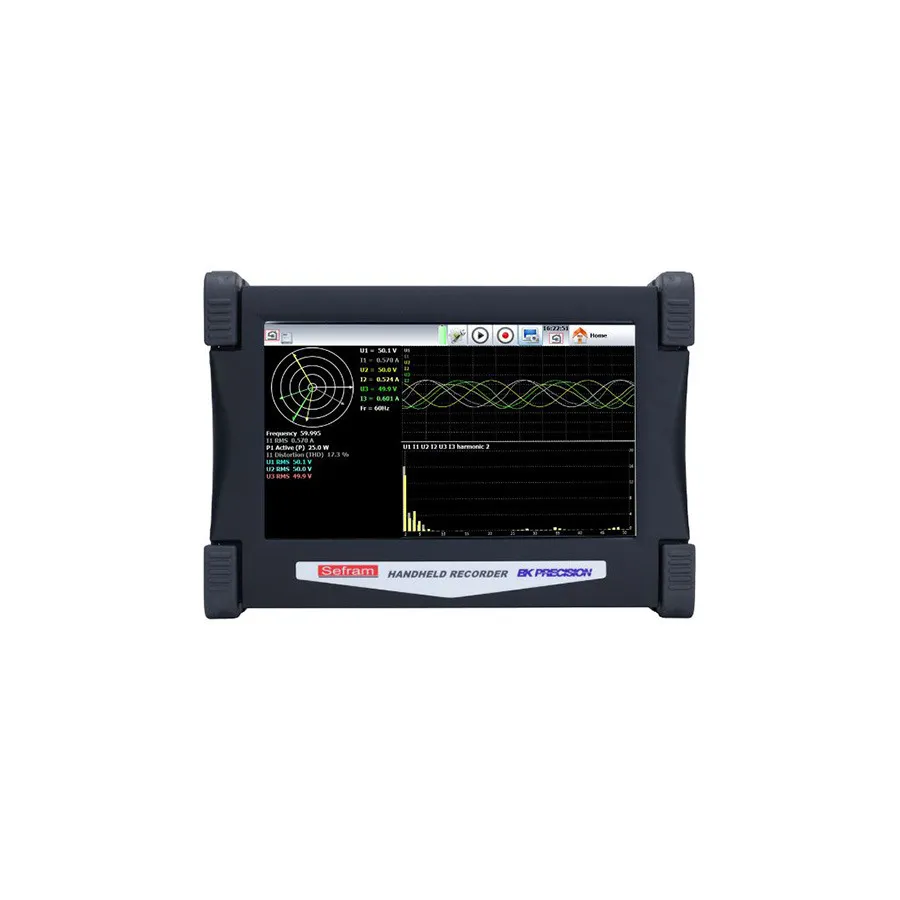

B&K Precision DAS50-PT High Speed Multi-Function Recorder
Request a quote
B&K Precision DAS50-PT is a 4-channel high-speed recorder with 1 MSa/s sampling, 10-inch display, 32GB memory, thermal printer, and Pt100/Pt1000 temperature support.
Product details
| Model | DAS50-PT |
| Manufacturer | B&K Precision |
| Category | Recorders |
| Availability | Made to order |
Description
Overview
The B&K Precision DAS50-PT is a high-speed, portable multi-function data recorder with integrated temperature measurement capabilities and thermal printer. Featuring 4 analog input channels, Pt100/Pt1000 sensor support, and 32GB internal storage, it is ideal for applications requiring simultaneous measurement of electrical signals and temperature. The CAT III 600V isolation rating and compact design make it suitable for field service, power system analysis, and condition monitoring in industrial environments.
Key Features
- Fast 1 MSa/s sampling rate in memory mode with 100 kHz bandwidth
- 4 analog input channels for voltage, current, temperature, and frequency measurement
- Wide input range: ±5 mV to ±500 V with 14-bit resolution
- Pt100/Pt1000 temperature sensor support for direct thermocouple and RTD measurement
- 10-inch color touchscreen with unlimited scrolling and zoom capabilities
- 32GB solid-state memory enabling extended data recording
- CAT III 600V rated isolated channels for safe field measurement
- 16 logic input channels for digital signal capture
- 110 mm thermal printer for immediate on-site documentation
- Up to 9.5 hours battery life with 2 USB ports and LAN interface
Applications
- Measuring signals ranging from small sensors to large electrical systems
- Maintenance and failure analysis with temperature correlation
- Power analysis of single and three-phase systems
Specifications
| Series | DASX0 Series |
