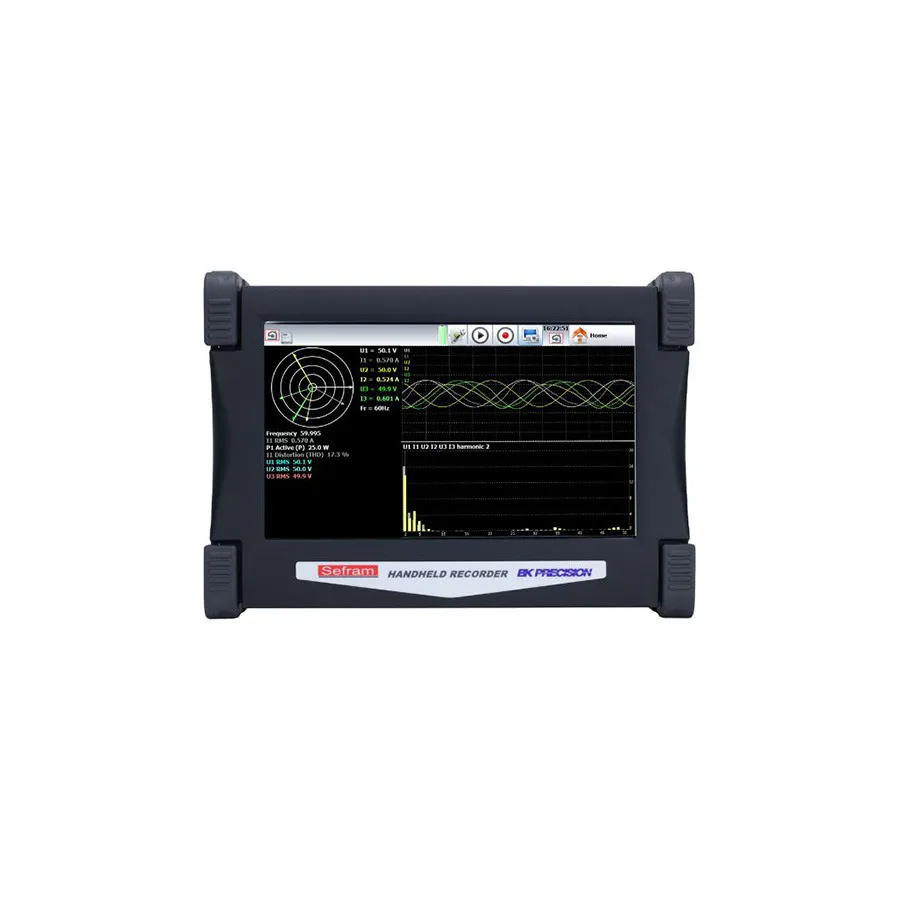

B&K Precision DAS50-P High Speed Multi-Function Recorder
Request a quote
B&K Precision DAS50-P is a 4-channel high-speed recorder with 1 MSa/s sampling, 10-inch display, 32GB memory, up to 9.5-hour battery, and integrated thermal printer.
Product details
| Model | DAS50-P |
| Manufacturer | B&K Precision |
| Category | Recorders |
| Availability | Made to order |
Description
Overview
The B&K Precision DAS50-P is a high-speed, portable multi-function data recorder designed for capturing and analyzing mixed signal types simultaneously. With 4 analog input channels, integrated thermal printer, and 32GB of internal storage, it accommodates applications ranging from small sensor measurements to large electrical system analysis. The CAT III 600V isolation rating and rugged design make it suitable for field use in maintenance, troubleshooting, and power system monitoring.
Key Features
- Fast 1 MSa/s sampling rate in memory mode with 100 kHz bandwidth
- 4 analog input channels supporting voltage, current, temperature, and frequency
- Wide input range: ±5 mV to ±500 V with 14-bit resolution
- 10-inch color touchscreen with unlimited scrolling and zoom
- 32GB solid-state memory for extended recording periods
- CAT III 600V rated isolated channels
- 16 logic input channels for digital signal capture
- 110 mm thermal printer for on-site documentation
- Up to 9.5 hours battery life on a single charge
- 2 USB host ports and LAN interface for data transfer
Applications
- Measuring signals from small sensors to large electrical systems
- Maintenance and failure analysis
- Power analysis of single and three-phase systems
Specifications
| Series | DASX0 Series |
