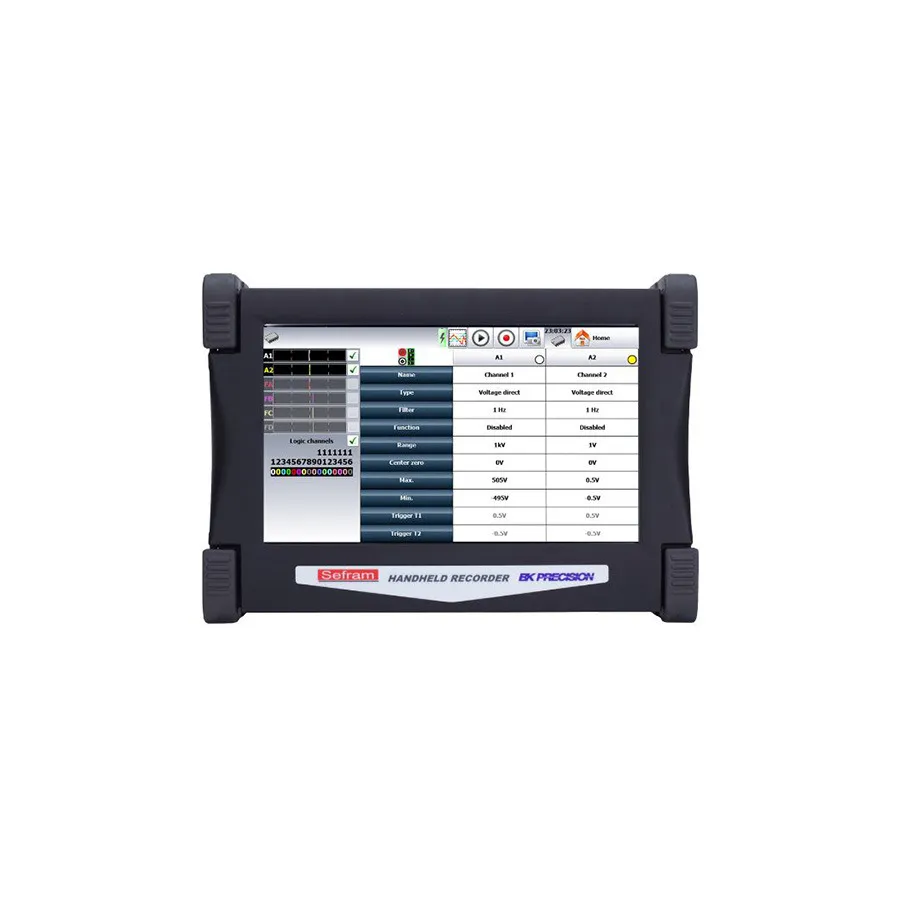

B&K Precision DAS30-P High Speed Multi-Function Recorder

Overview

The B&K Precision DAS30-P is a high-speed multi-function recorder with integrated thermal printer for on-site data output. Engineered for capturing transient events and mixed-signal measurements, the DAS30-P features a 1 MSa/s sampling rate and can simultaneously record voltage, temperature, current, frequency, and logic signals. The CAT III 600 V isolation rating makes it suitable for electrical power analysis and comprehensive sensor signal logging.

Key Features

• High-speed 1 MSa/s sampling rate with 100 kHz bandwidth
• 2 µs sampling interval in file mode for capturing transient events
• ±5 mV to ±500 V input range with 14-bit resolution
• CAT III 600 V rated isolated channels
• 2 analog input channels with 16 logic input channels
• 10-inch color touchscreen display with unlimited scrolling and delta cursor functions
• 110 mm thermal printer for on-site data printing
• 32 GB internal solid-state memory
• Up to 9.5 hours battery life
• Temperature measurements via thermocouples or Pt100/Pt1000 sensors (factory option)
• 2 USB Host ports and 1 LAN interface

Applications

• Electrical power and circuit analysis with on-site printing
• Transient event monitoring and troubleshooting
• Multi-signal sensor data acquisition
• Field-based power quality assessments with printed reports
