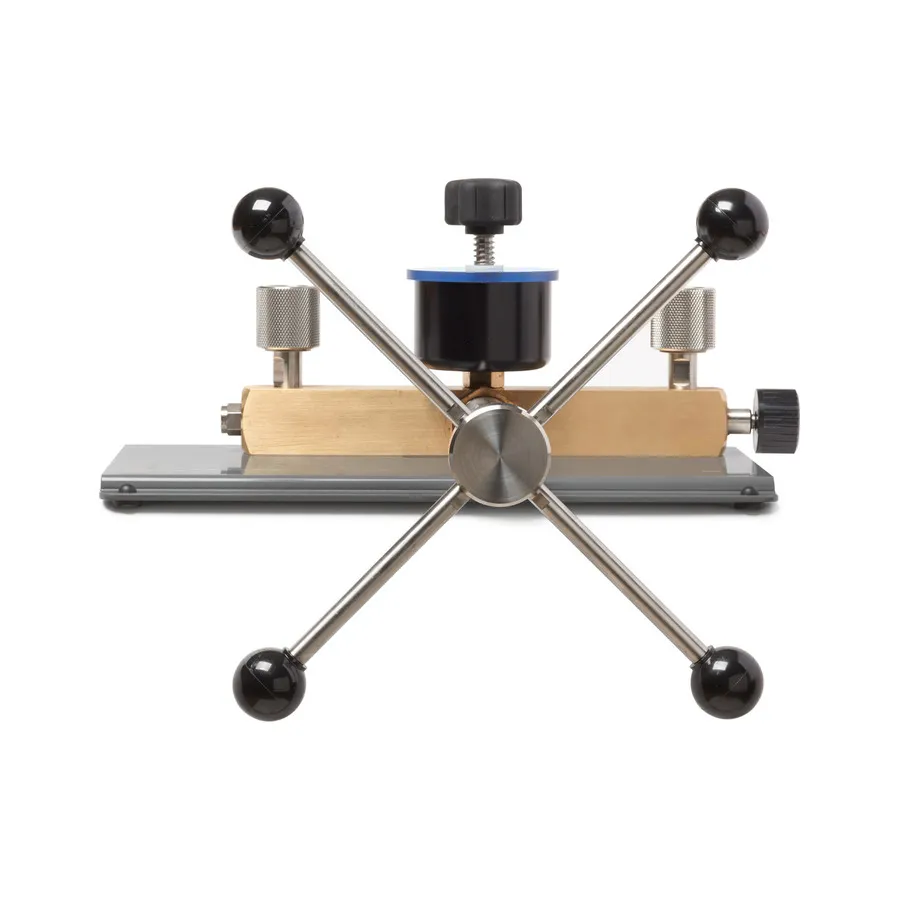

Fluke P5514B-70M-EP Hydraulic Test Pump
Request a quote
Fluke P5514B-70M-EP hydraulic test pump generates pressure to 70 MPa (10,000 psi) with ethylene propylene seals for compatibility with aggressive fluids.
Product details
| Model | P5514B-70M-EP |
| Manufacturer | Fluke |
| Category | Pressure Calibrators |
| Availability | Made to order |
Description
Overview
Fluke P5514B-70M-EP is a hydraulic pressure test pump designed for calibrating pressure gauges, switches, and transducers. It generates pressure up to 70 MPa (10,000 psi) with precise, fine adjustment capabilities enabled by a Vernier control. This variant features ethylene propylene O-ring seals and an anodized aluminum reservoir tube, providing enhanced compatibility with aggressive fluids including solvents, fuel oils, and brake fluids.
Key Features
- Generates pressure to 70 MPa (10,000 psi)
- Vernier fine adjustment control for cardinal point calibrations
- Ethylene propylene O-ring seals for aggressive fluid compatibility
- Anodized aluminum reservoir tube
- Tool-free test connectors with rotating collar design
- Improved reservoir valve sealing for stable pressure generation
- Test port adapters for common NPT and BSP thread sizes
- Bench or field portable design
Applications
- Pressure gauge calibration
- Pressure switch calibration
- Pressure transducer calibration
- Applications with aggressive fluids (solvents, fuel oils, brake fluids)
- Mobile and field testing
Specifications
| Alternate Product Number | 5283641 |
| Series | P5514B Series |
