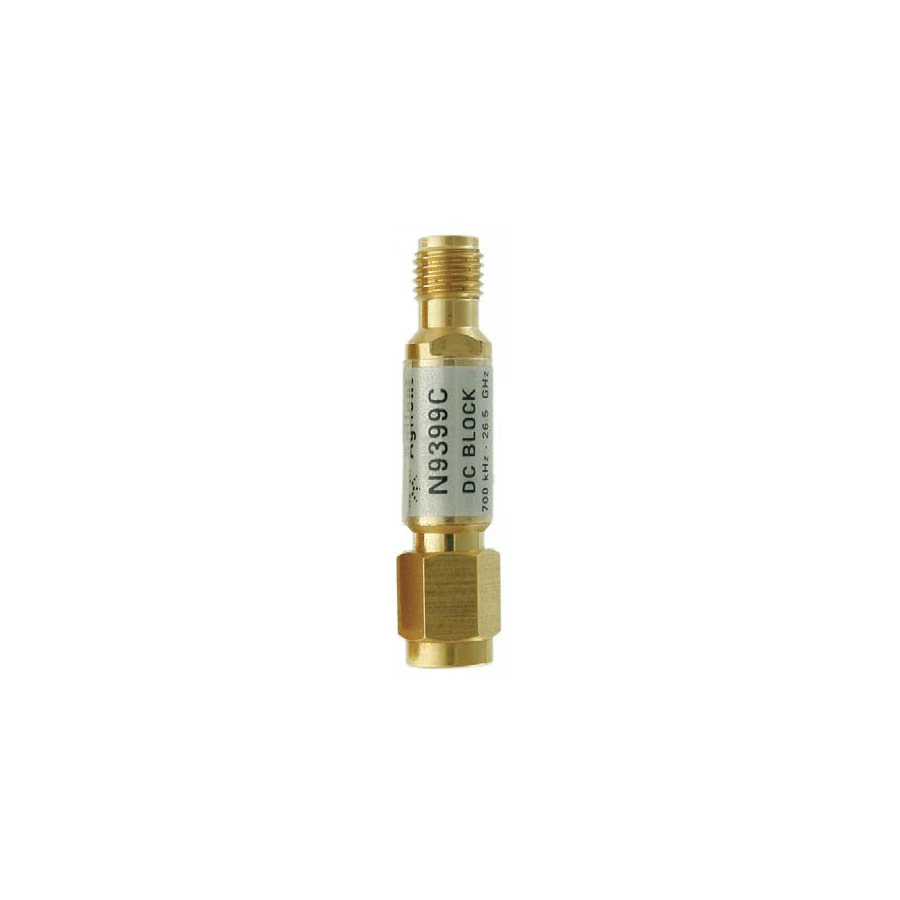

Keysight N9399C DC Block
Request a quote
Keysight N9399C DC block covers 700 kHz to 26.5 GHz with 1.2 dB insertion loss, 50 V DC rating, and 3.5 mm connectors.
Product details
| Model | N9399C |
| Manufacturer | Keysight |
| Category | Power Splitters & Limiters |
| Availability | Made to order |
Description
Overview
The Keysight N9399C is a DC block designed for RF and microwave applications with support for higher DC working voltages. It provides reliable DC blocking from 700 kHz to 26.5 GHz, making it suitable for applications requiring 50 V DC voltage rating.
Key Features
- Frequency range: 700 kHz to 26.5 GHz
- Low insertion loss: 1.2 dB
- Return loss: 10 dB (700 kHz to 2 MHz) and 17 dB (2 MHz to 26.5 GHz)
- Fast rise time: 3 ps (typical)
- Group delay: 118 ps (typical)
- Maximum DC working voltage: 50 V
- 3.5 mm precision coaxial connectors (male-female)
- Maximum RF power: 1 W average
Applications
- RF and microwave measurement systems
- Test and measurement instrumentation
- Signal conditioning with higher voltage DC requirements
- Communication system testing
Specifications
