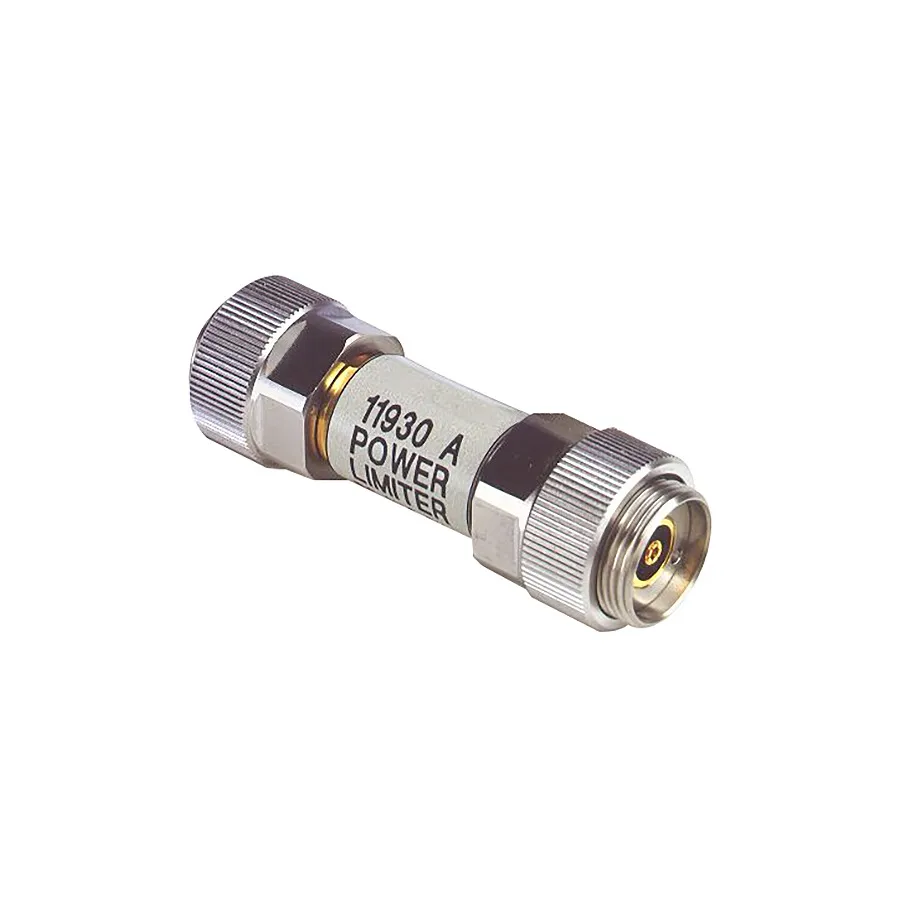

Keysight 11930A APC-7 Power Limiter
Request a quote
Keysight 11930A APC-7 power limiter for RF and microwave instrumentation protection, covering DC to 6 GHz with 1.0–1.5 dB insertion loss and 30 dBm limiting threshold.
Product details
| Model | 11930A |
| Manufacturer | Keysight |
| Category | Power Splitters & Limiters |
| Availability | Made to order |
Description
Overview
The Keysight 11930A is a power limiter designed to provide input protection for RF and microwave instrumentation. It features low insertion loss and linear operation at low input levels while protecting against transients and overloads. The limiter is furnished with an APC-7 (7-mm) connector.
Key Features
- Frequency range: DC to 6 GHz
- Insertion loss: 1.0 dB to 3 GHz, 1.5 dB to 6 GHz
- Return loss: 22 dB (30 kHz to 3 GHz), 20 dB (3 GHz to 6 GHz)
- Continuous power: 3 W
- Pulse power: 6 W (30 ms pulse width, 10% duty cycle)
- Limiting threshold: 30 dBm typical
- Maximum DC voltage: 30 V
- APC-7 (7-mm) connector
Applications
- Network analyzer input protection
- Spectrum analyzer protection
- RF and microwave signal source protection
- Transient and overload protection
