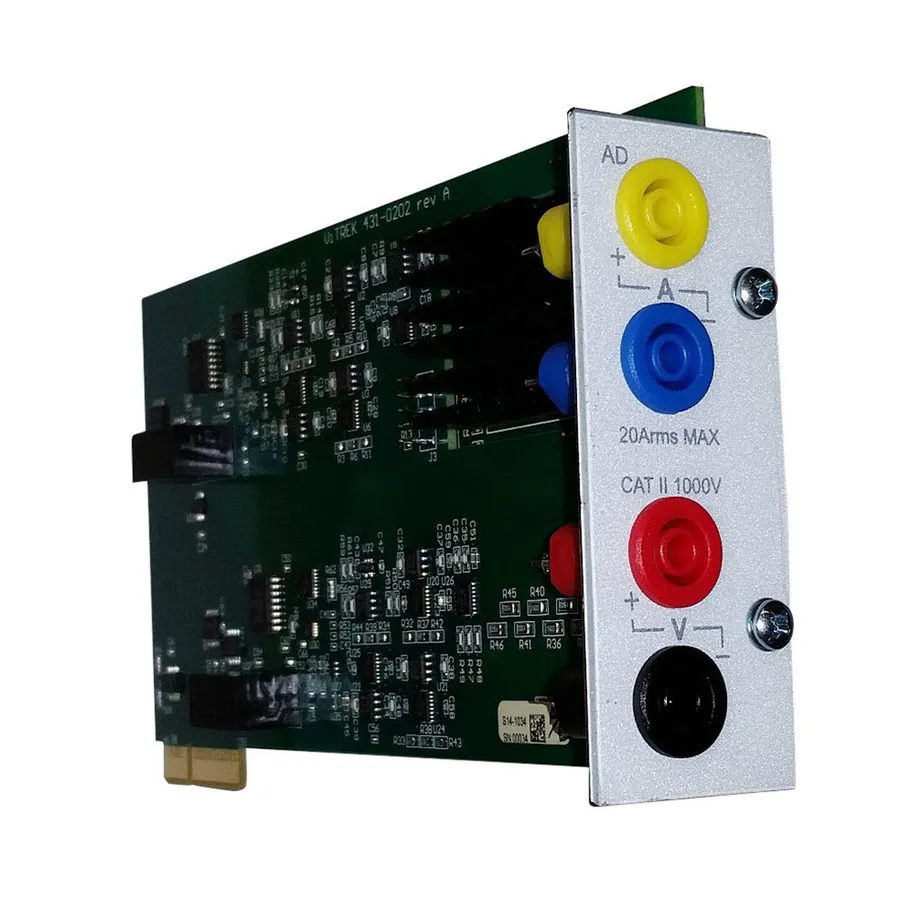

Vitrek VT Very-High Twin Shunt Channel Card
Request a quote
Vitrek VT channel card for PA910/920 power analyzers with 0.045% power accuracy, 2MHz bandwidth, and up to 30A continuous current with twin shunt inputs.
Product details
| Model | VT |
| Manufacturer | Vitrek |
| Category | Power Quality Analyzers |
| Availability | Made to order |
Description
Overview
The Vitrek VT is a very-high twin shunt channel card for the PA910 power analyzer. Each electrical channel provides one voltage and one current measurement that are always simultaneously sampled to provide optimal power accuracy. This card is recommended for users seeking the ease of use of the PA9xx family combined with higher accuracy at an economical price.
Key Features
- 0.045% base power accuracy
- 2MHz bandwidth
- 24-bit sampling
- 1000Vrms maximum continuous voltage input
- Twin shunt current input supporting up to 32Arms continuous and 150A peak inrush
- Resolution down to 0.1µA for precise current measurement
- Single input terminal pair for shunt connection
- Compatible with external current output CT
Applications
- Power quality analysis
- Industrial power monitoring systems
- Three-phase power measurement systems
Specifications
| Series | PA910 Series |
