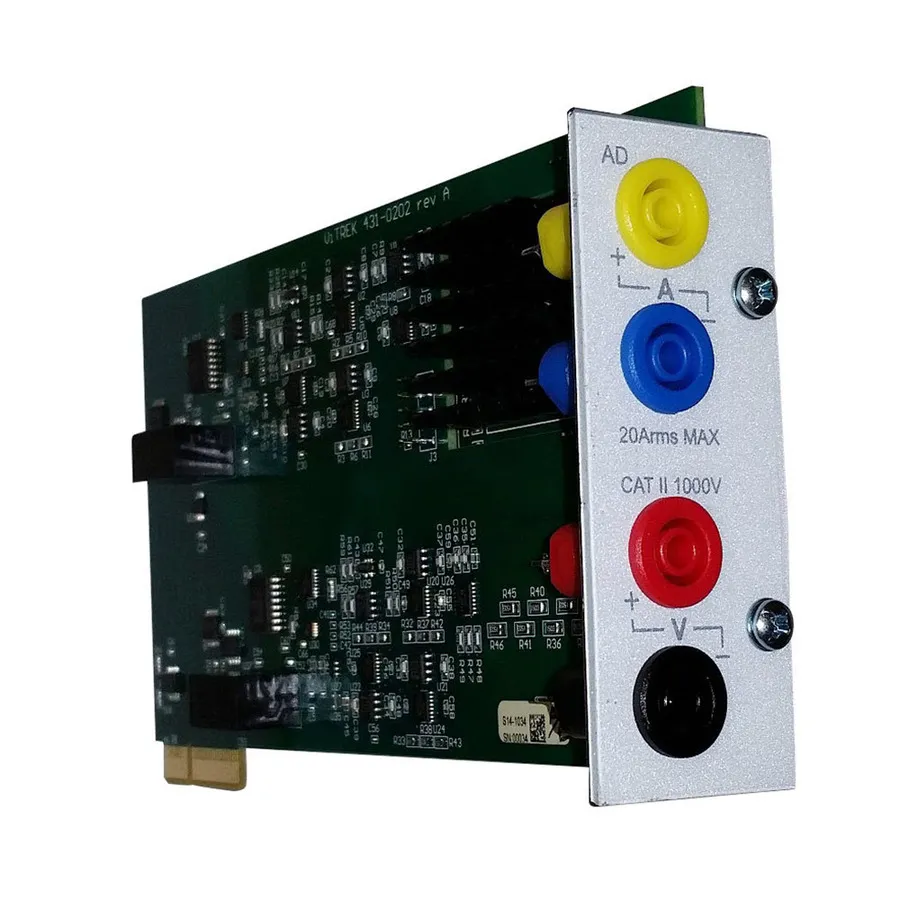

Vitrek UX Ultra-Precision External Current Transducer Input Channel Card
Request a quote
Vitrek UX is an ultra-precision current transducer input channel card for PA920 power analyzers with 0.024% power accuracy and 2MHz bandwidth.
Product details
| Model | UX |
| Manufacturer | Vitrek |
| Category | Power Quality Analyzers |
| Availability | Made to order |
Description
Overview
The Vitrek UX is an ultra-precision external current transducer input channel card designed for the PA920 power analyzer. It provides synchronized voltage and current measurements with exceptional accuracy, making it ideal for precise power quality analysis and electrical testing applications.
Key Features
- Ultra-precision design with 0.024% base power accuracy
- 2MHz bandwidth for accurate measurement of complex waveforms
- 24-bit sampling for high-resolution data capture
- 1250Vrms maximum continuous voltage input
- External shunt or low-impedance voltage output CT compatible
- Resolution down to 0.1µV for precise current measurements
- Modular design allows one to four channels per PA920 mainframe
- Simultaneous voltage and current sampling for optimal power accuracy
Applications
- Precision power quality analysis and monitoring
- Electrical equipment testing and validation
- Research and development power measurements
- Industrial power system diagnostics
- Laboratory precision testing environments
Specifications
| Series | PA920 Series |
