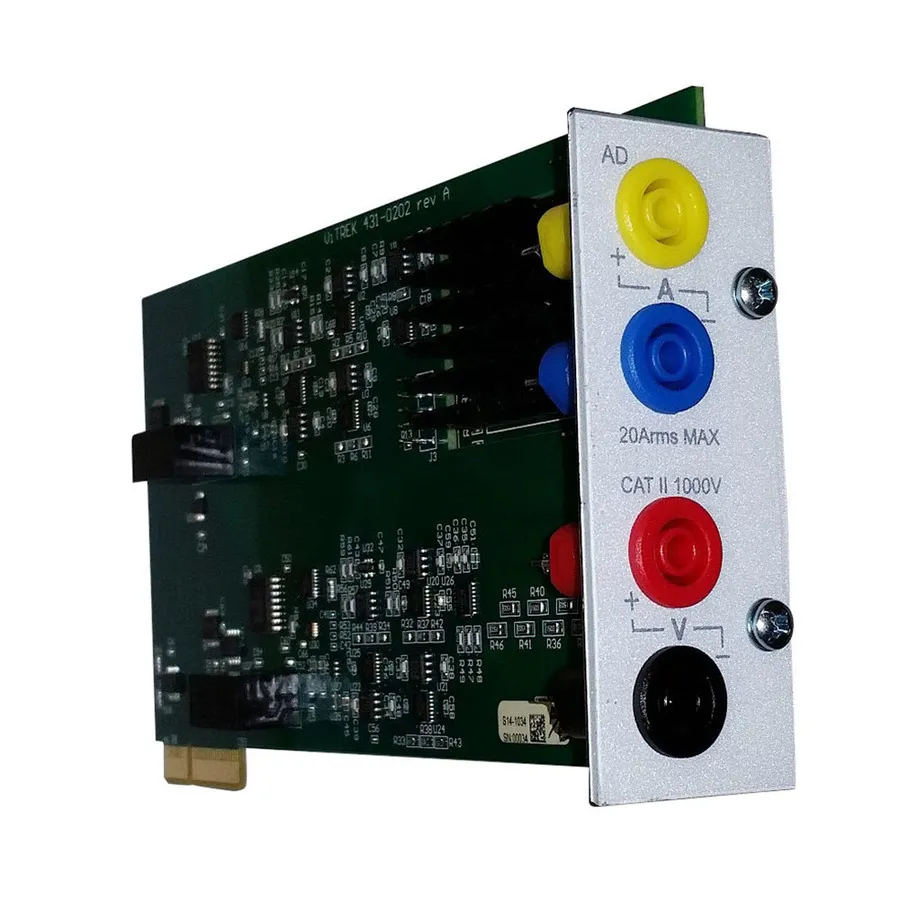

Vitrek UT Ultra-Precision Twin Shunt Channel Card
Request a quote
Vitrek UT channel card delivers 0.024% power accuracy with 2MHz bandwidth and 24-bit sampling for PA920 power analyzers.
Product details
| Model | UT |
| Manufacturer | Vitrek |
| Category | Power Quality Analyzers |
| Availability | Made to order |
Description
Overview
The Vitrek UT is an ultra-precision twin shunt channel card designed for the PA920 power analyzer. This card provides one voltage and one current measurement input, simultaneously sampled for superior power measurement accuracy. The UT channel type delivers the highest accuracy available in the PA9xx family.
Key Features
- 0.024% base power accuracy (highest precision in PA9xx line)
- 2MHz bandwidth with 24-bit sampling
- Up to 1250Vrms maximum continuous voltage input
- Twin shunt current input: up to 32Arms continuous, 150Apk inrush
- Resolution down to 0.1µA
- Compatible with external CT current output
Applications
- High-accuracy power analysis and measurement
- Precision electrical channel installation in multi-channel systems
- Advanced power quality assessment
Specifications
| Series | PA920 Series |
