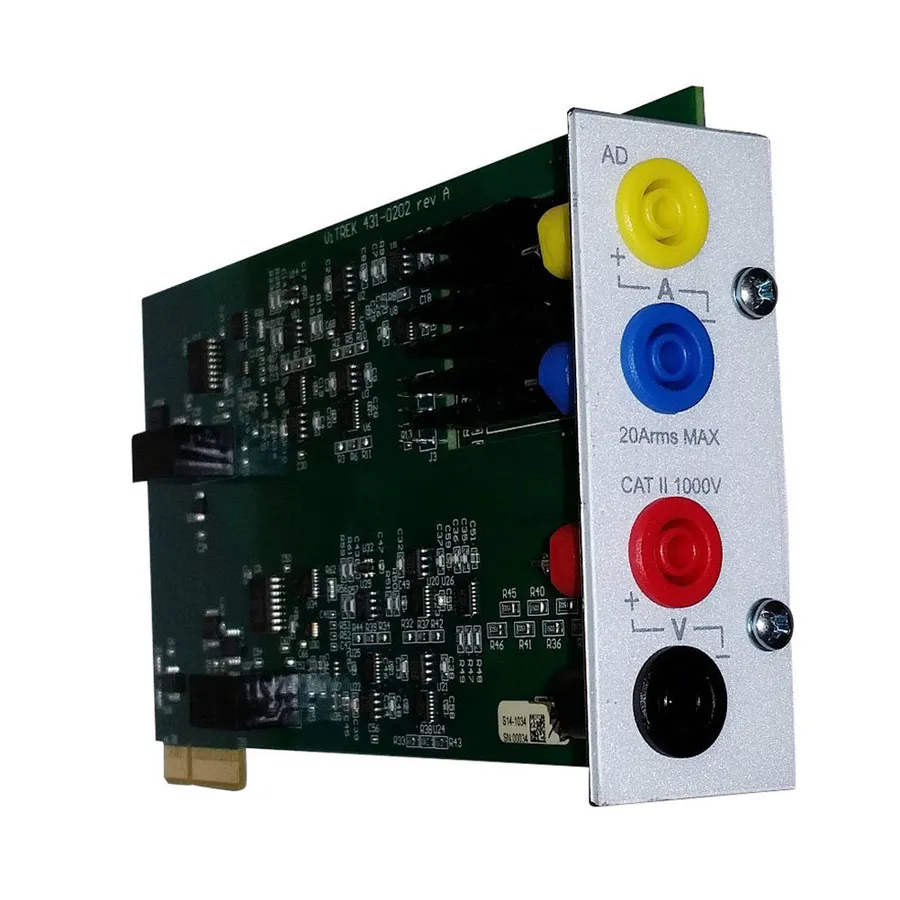

Vitrek BT High-Bandwidth Twin Shunt Channel Card
Request a quote
Vitrek BT High-Bandwidth Twin Shunt Channel Card for PA910/920 power analyzers with 4.5 MHz bandwidth and 32A dual shunt current inputs.
Product details
| Model | BT |
| Manufacturer | Vitrek |
| Category | Power Quality Analyzers |
| Availability | Made to order |
Description
Overview
The Vitrek BT is a high-bandwidth twin shunt channel card for the PA910 and PA920 power analyzers. This channel type provides 4.5 MHz bandwidth for applications requiring higher frequency power analysis, with simultaneous voltage and current sampling for accurate power measurements.
Key Features
- High bandwidth of 4.5 MHz for higher frequency measurements
- Base accuracy of 0.045%
- Dual shunt current inputs (up to 32A continuous, 150A peak inrush)
- Resolution down to 0.1µA for precise current measurements
- Single input terminal pair for both current shunts
- Compatible with external current output CT
- 1000V maximum continuous voltage input
- 24-bit sampling resolution
- Independent configuration for current offset and scaling
Applications
- High-frequency power analysis and characterization
- Harmonic and noise measurement on power systems
- Motor drive and inverter efficiency testing
- Switched-mode power supply (SMPS) measurements
- Power quality monitoring and compliance testing
Specifications
| Series | PA920 Series |
