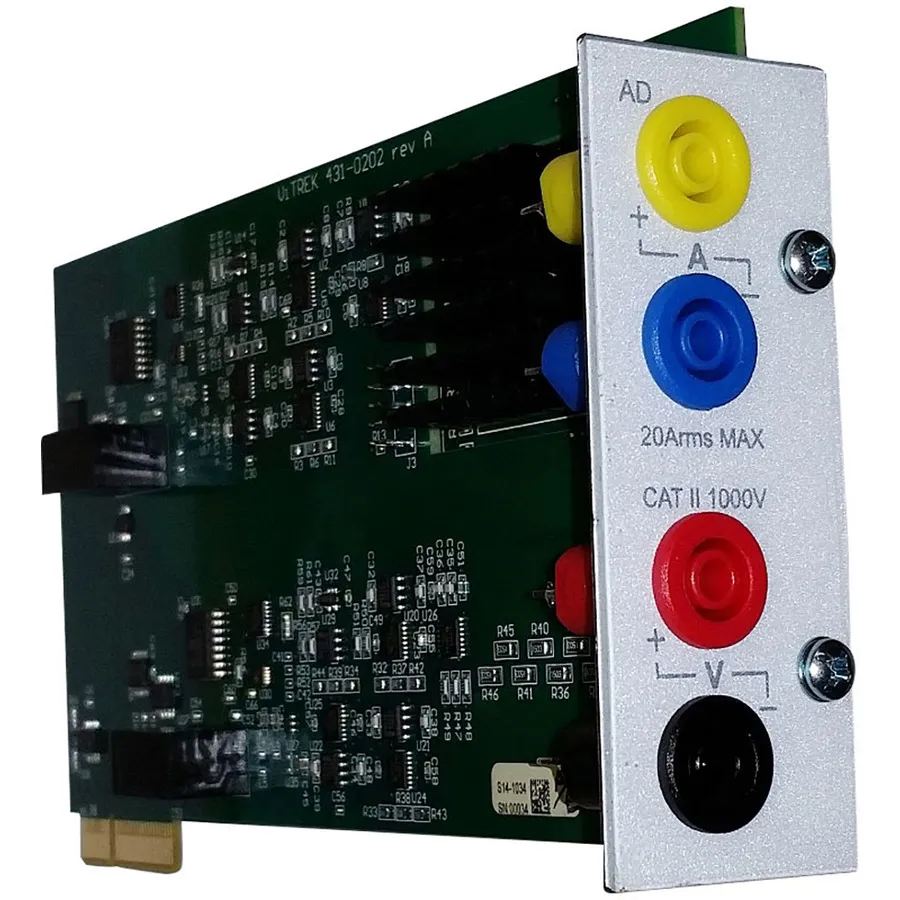

Vitrek AD Hi Accuracy Dual Shunt Channel Card
Request a quote
Vitrek AD is a precision channel card for PA900 power analyzers offering 0.03% accuracy, dual shunt current input, and 1 MHz bandwidth.
Product details
| Model | AD |
| Manufacturer | Vitrek |
| Category | Power Quality Analyzers |
| Availability | Made to order |
Description
Overview
The Vitrek AD is a high-accuracy channel card for the PA900 Harmonic Power Analyzer. It provides total 0.03% measurement accuracy with 1 MHz bandwidth and 24-bit sampling. Each channel delivers simultaneous voltage and current measurement for optimal power accuracy. The AD card features a dual shunt current input option with resolution down to 0.1 µA, capable of handling up to 20 A continuous and 150 A peak inrush current.
Key Features
- Total measurement accuracy of 0.03% (two-year rating)
- 1 MHz bandwidth for high-frequency power measurement
- 24-bit sampling for precise data acquisition
- Simultaneous voltage and current sampling for accurate power calculations
- Dual shunt current input with resolution down to 0.1 µA
- Accommodates up to 20 A continuous and 150 A peak inrush current
- Maximum continuous voltage input of 1000 Vrms
- Compatible with current output CTs
- Modular design allows up to 4 channels in a single PA900 mainframe
Applications
- Precision power quality analysis and monitoring
- Harmonic analysis and distortion measurement
- Energy efficiency testing and verification
- Electrical system validation and compliance testing
Included Accessories
- 4 color-coded heavy-duty 1.5 meter test leads
- NIST calibration certificate
Specifications
| Series | PA900 Series |
