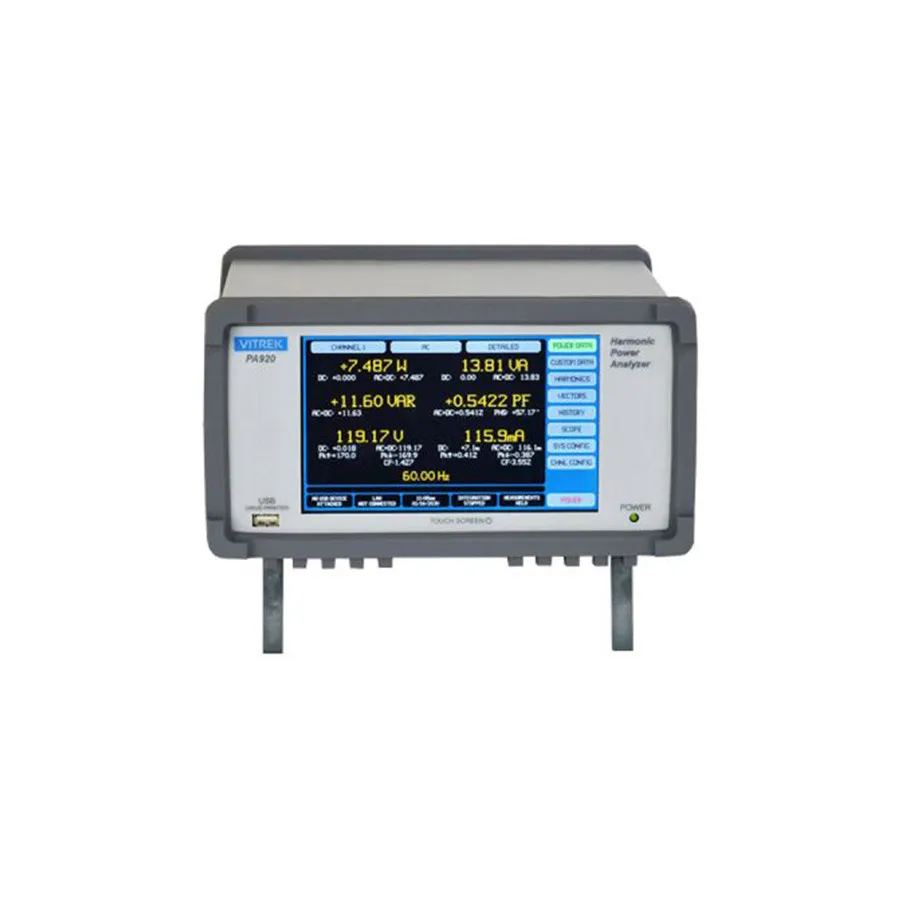

Vitrek PA924UT Power Analyzer

Overview

The Vitrek PA924UT is a high-precision power analyzer from the PA920 Series, featuring four ultra-precision UT channel cards. Equipped with a full-color touchscreen interface, it enables users to quickly configure settings, custom screens, and interface commands. The mainframe is designed for modular expansion with up to 8 available channel combinations to meet diverse power analysis needs.

Key Features

• 0.024% power accuracy (industry-leading)
• 2MHz bandwidth with 24-bit sampling
• 1250Vrms maximum continuous voltage input
• Ultra-precision dual shunt current input (0 to 32A continuous, 150A peak inrush)
• 0.1µA current resolution
• 100 full precision readings per second
• Handles 5MHz waveforms with crest factors up to 100:1
• Full-color touchscreen with easy configuration
• Modular channel card design for flexible expansion

Applications

• Power factor measurement and analysis
• Low phase angle and high crest factor load testing
• Electrical device characterization and validation
• Energy efficiency studies and power consumption analysis
• Industrial equipment performance monitoring

Included Accessories

• PA920 mainframe
• 4 UT channel cards (ultra-precision dual shunt)
• Power cord
• Operating manual
• Supplemental applications software
