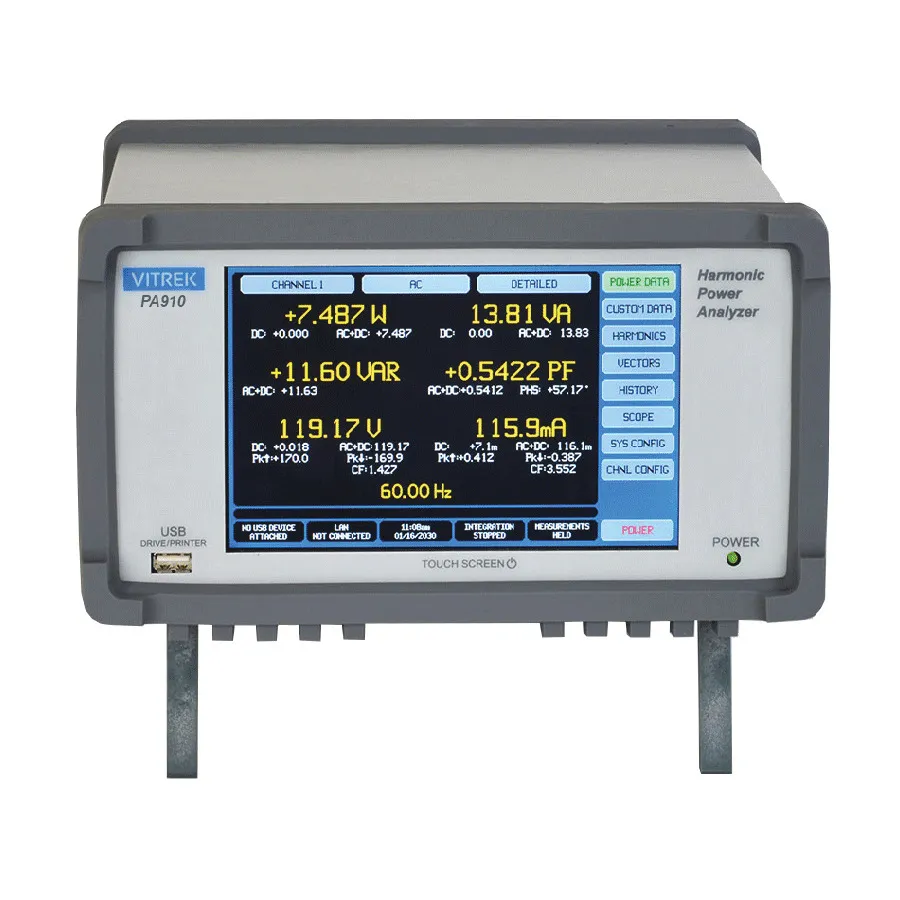

Vitrek PA911VT Power Analyzer

Overview

The Vitrek PA911VT is a high-precision power analyzer from the PA910/PA920 series featuring a single very high-precision VT channel card. Equipped with a color touchscreen for easy configuration, it provides 0.045% power accuracy with 2MHz bandwidth. This model offers an excellent balance of precision and ease of use for demanding power measurement applications.

Key Features

• Single VT channel card with 0.045% base power accuracy
• 2MHz bandwidth with 24-bit sampling resolution
• 1000Vrms maximum continuous voltage input
• Type T current input with dual shunt (up to 32Arms continuous, 150Apk inrush)
• 0.1µA current resolution
• Compatible with current output current transformers
• Color touchscreen interface for setup and measurement configuration
• 100 full precision readings per second
• Expandable design with three additional channel slots
• Built-in data logger with USB and internal storage
• High crest factor support (up to 100:1)
• Ethernet, High Speed Serial, and USB control interfaces
• CE mark certified to EN61010
• Made in the USA

Applications

• Single-channel precision power measurements
• Power factor and phase angle analysis
• Harmonic analysis and waveform measurement
• Electronics testing with high-precision requirements
• Power quality evaluation

Included Accessories

• Power analyzer mainframe with 1 VT channel card
• Power cord
• Operating manual and supplemental applications
