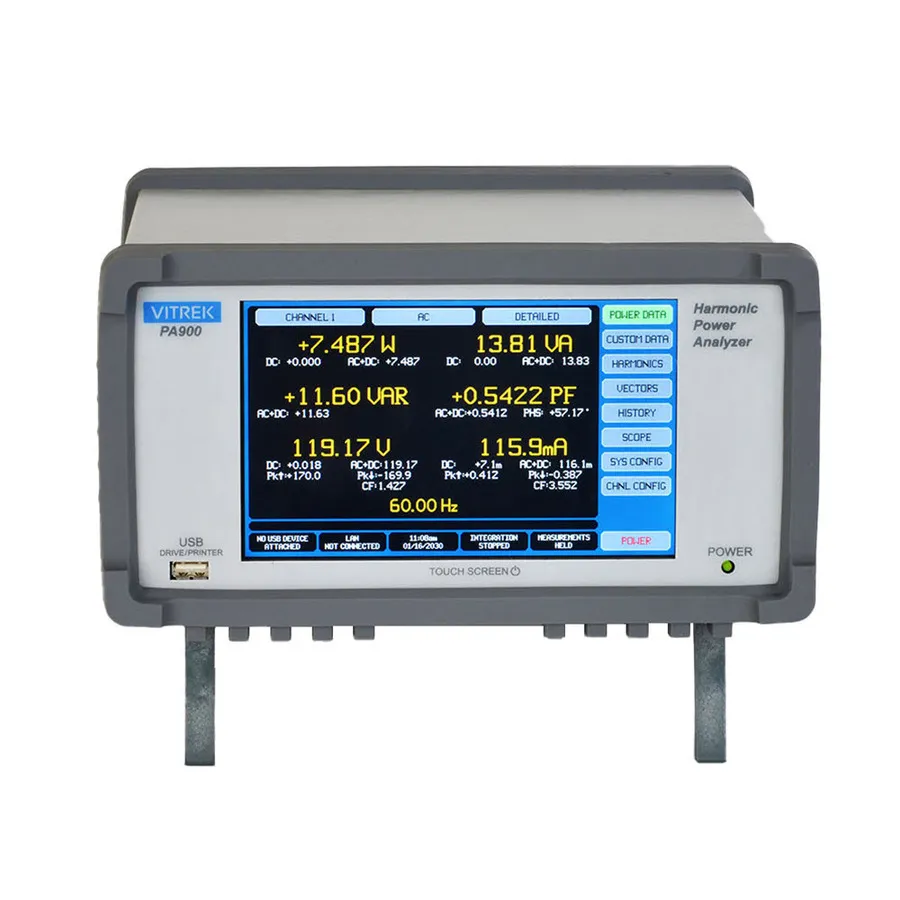

Vitrek PA901AD Power Analyzer

Overview

Vitrek PA901AD is a single-channel configuration of the PA900 modular power analyzer platform. It comes equipped with one A-type (hi-accuracy) channel card with dual shunt current input, delivering 0.03% measurement accuracy with 1 MHz bandwidth. The PA900 is a refreshingly easy-to-use, high-performance power analyzer designed for multi-channel, high-accuracy power measurement applications without exceeding budget constraints.

Key Features

• A-type channel: 0.03% total accuracy (two-year rating)
• 1 MHz class bandwidth for stable waveform capture
• 24-bit measurement resolution
• Dual Shunt current input: up to 20 A continuous, 150 A peak inrush
• Current resolution: down to 0.1 µA
• Maximum voltage input: 1000 Vrms continuous
• Modular design: expandable up to 4 channels with different card types
• Touchscreen user interface for intuitive operation

Applications

• High-precision power and energy measurement
• Power quality analysis
• Equipment efficiency testing

Included Accessories

• Power Cord
• Operating Manual
• Supplemental Applications
• H500, EN, and MU options
