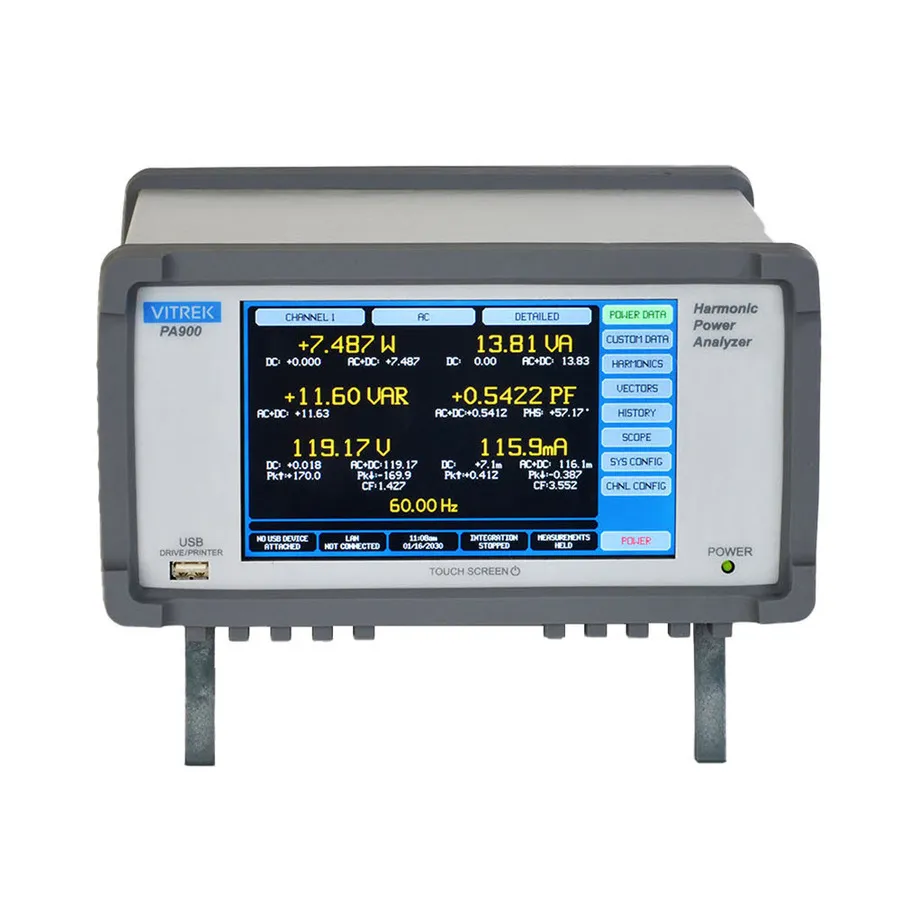

Vitrek PA900 Harmonic Power Analyzer Mainframe
Request a quote
Vitrek PA900 Precision Harmonic Power Analyzer Mainframe is a modular multi-channel power analyzer platform with high-accuracy, wideband performance for energy measurement applications.
Product details
| Model | PA900 |
| Manufacturer | Vitrek |
| Category | Power Analyzers |
| Availability | Made to order |
Description
Overview
The Vitrek PA900 Precision Harmonic Power Analyzer is a modular power measurement platform designed for flexible, high-performance energy analysis. Its modular architecture allows customers to configure measurement capabilities according to their specific testing requirements, with support for up to 4 measurement channels using interchangeable channel cards.
Key Features
- Modular design with flexible configuration options
- Up to 4 measurement channels in a single mainframe
- Multiple channel card types for different measurement needs
- High-accuracy power measurement (0.03% to 0.1% depending on card type)
- Wideband performance up to 5 MHz
- Economical pricing without sacrificing performance
Channel Card Options
- S-type: Standard 0.1% accuracy, up to 1 MHz bandwidth
- A-type: Ultra-precision 0.03% accuracy, up to 1 MHz bandwidth
- W-type: Wideband precision, up to 5 MHz bandwidth
- L-type: Optimized for low-frequency measurements
Applications
- Power supply design and validation
- Energy consumption testing
- Harmonic analysis and power quality assessment
- Product compliance testing
Specifications
| Number of Phases | 3 |
| Series | PA900 Series |
| Display | 7" Color LCD Touch |
| Interface | USB, LAN, RS-232 |
