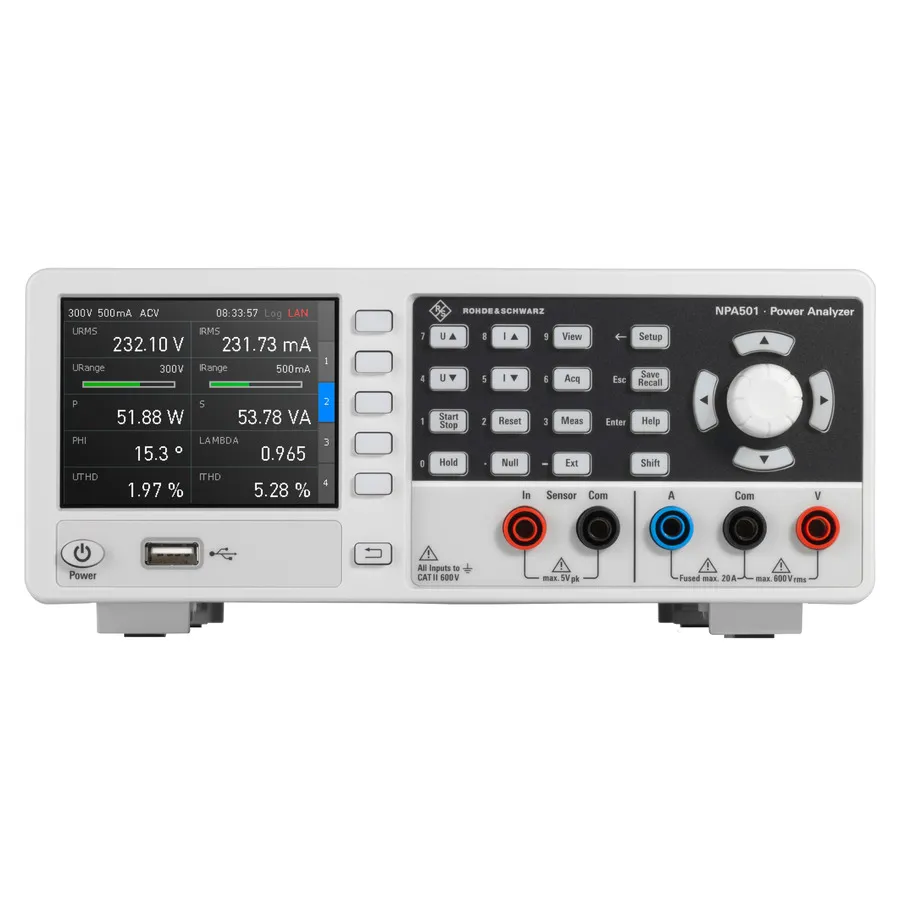

Rohde & Schwarz NPA501-G Power Analyzer
Request a quote
Rohde & Schwarz NPA501-G: DC–100 kHz power analyzer with 50 µW–12 kW measurement range, harmonic analysis to 50th order, QVGA color display, 0.05% accuracy, and GPIB interface.
Product details
| Model | NPA501-G |
| Manufacturer | Rohde & Schwarz |
| Category | Power Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz NPA501-G is a mid-range power analyzer in the NPA series, designed for detailed power measurement and harmonic analysis. With a measurement range from 50 µW to 12 kW and bandwidth spanning DC to 100 kHz, it provides comprehensive power quality assessment for both research and production testing environments. The instrument features a 0.05% basic accuracy with 16-bit resolution for voltage and current measurement.
Key Features
- Power measurement range: 50 µW to 12 kW
- Frequency bandwidth: DC to 100 kHz with 500 ksample/s sampling rate
- Harmonic analysis up to the 50th harmonic with logarithmic amplitude display
- 0.05% basic accuracy with 16-bit resolution
- QVGA color display (320 × 240 pixel) with real-time waveform and trend chart functions
- Peak-to-peak measurements and four BNC ports for analog and digital I/O
- Inrush function for motor startup analysis
- Data logging to .CSV format with timestamps; screen capture to USB
- PASS/FAIL function for automated compliance monitoring
- Remote control via Ethernet or USB with free LabVIEW and LabWindows/CVI drivers
- GPIB interface for instrument control integration
Applications
- Power quality assessment and harmonic analysis
- Production testing and compliance verification
- Power supply and inverter characterization
- Energy efficiency studies
- Integration into automated test systems
Specifications
| Maximum AC Voltage | 600 V |
| Maximum AC Current | 20 A |
| Number of Phases | 1 |
| Series | NPA Series |
| Alternate Product Number | 3657.0562.05 |
| Bandwidth | 100 kHz |
| Display | 3.5" QVGA Color |
| Includes | Set of power cables, Quick start guide |
| Interface | USB, LAN, GPIB |
| Sampling Rate | 500 kS/s |
