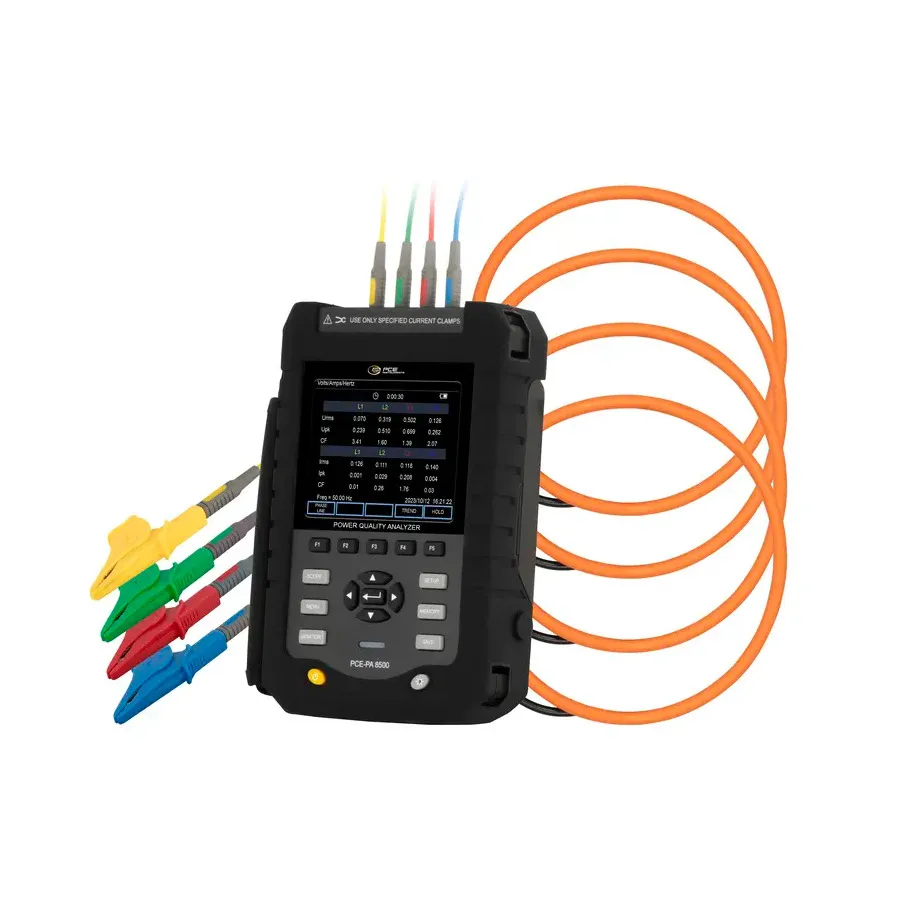

PCE Instruments PCE-PA 8500 Power Quality Analyzer

Overview

The PCE-PA 8500 is a comprehensive power quality analyzer designed for precise electrical measurements in industrial settings. It measures voltage, current, frequency, harmonics, and starting currents while providing accurate power and energy analysis. The device includes an 8GB data logger for extensive data storage and offers both LAN and USB connectivity for convenient data transfer and remote control.

With flexible current clamps rated up to 3000A, the analyzer facilitates measurement of high currents in demanding applications. The graphical representation of waveforms and vector graphics allows users to visually analyze electrical signals and identify power quality issues such as sags, surges, and flickers.

Key Features

• Voltage and current measurement with frequency analysis
• Harmonics and harmonic starting current measurement
• Power and energy measurement capabilities
• Detection of sags, surges, and flickers in power grid
• Graphical representation of waveform and vector graphics
• 8GB integrated data logger with microSD card support
• LAN and USB data interfaces
• Includes flexible current clamps up to 3000A
• Complies with standards: IEC61000-4-30, IEC61000-4-15, IEC61000-4-7, EN50160

Applications

• Power quality analysis and monitoring
• Harmonics testing and measurement
• Electrical system diagnostics
• Testing transformers, lighting systems, and frequency converters
• Power supply and switching electronics analysis

Included Accessories

• 1 PCE-PA 8500 Power Analyzer
• 4 flexible current clamps (up to 3000A)
• 5 test leads (2 m)
• 5 crocodile clips
• Software CD (also available for download)
• Power supply 12V DC / 2A
• Power cable
• User manual
